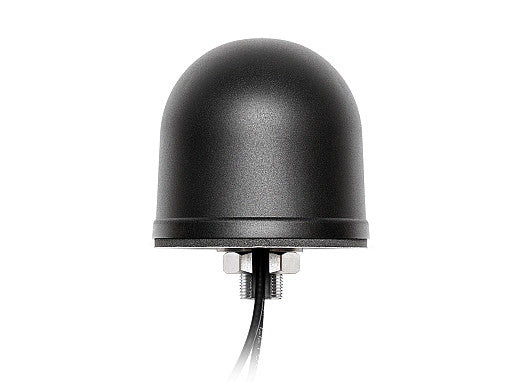

2J6A83Ba-RB-SP 5G screw mount Antenna Helm MIMO IP67/IP69K

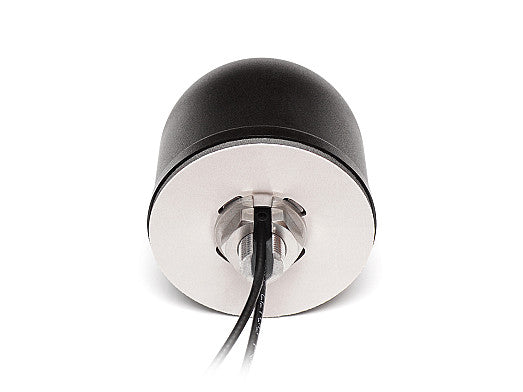

This heavy-duty antenna delivers high-speed, reliable connectivity for 5G, 4G, 3G, and 2G networks. Its dual-cable, MIMO design ensures robust data transmission and reception, making it ideal for demanding applications such as mobile broadband, automotive, smart grid, remote monitoring, smart cities, agriculture, and emergency services. The durable screw mount and anti-rotation foam base provide secure installation, while the compact, ground-plane dependent design allows for easy integration in various environments. The antenna is engineered for optimal efficiency and peak gain across all supported frequency bands, with linear polarization and omni-directional coverage for consistent performance.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Installation / Environmental

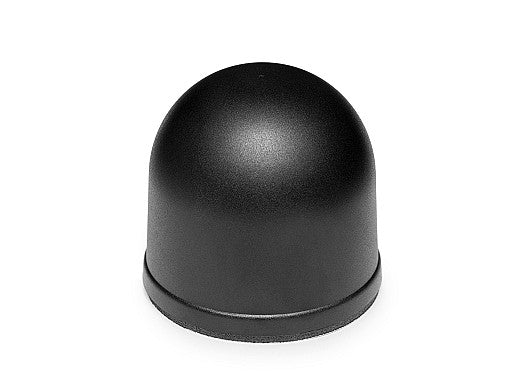

Built to withstand harsh environmental conditions, the 2J6A83Ba-RB-SP antenna holds IP67, IK09, and IP69K certifications. Its radome is made of ASA material and features a black color, while the antenna base is constructed from Zamak, ensuring durability and resilience. The antenna is RoHS compliant and can operate within a temperature range of -40 to +85 degrees Celsius. All connectors and cables are fully customizable.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
Mounting: Screw Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.1, ~-15.2, ~-13.5, ~-7.5
VSWR: ~3.5:1, ~1.7:1, ~1.7:1, ~2.5:1
Efficiency (%): ~30.6, ~45.1, ~35.9, ~22.8
Peak Gain (dBi): ~-1.9, ~2.4, ~3.4, ~-0.7
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.2, ~-12.0, ~-10.3, ~-5.1
VSWR: ~4.8:1, ~1.9:1, ~2.1:1, ~3.7:1
Efficiency (%): ~30.1, ~45.1, ~33.9, ~20.4
Peak Gain (dBi): ~-1.8, ~2.4, ~2.6, ~-2.1
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
