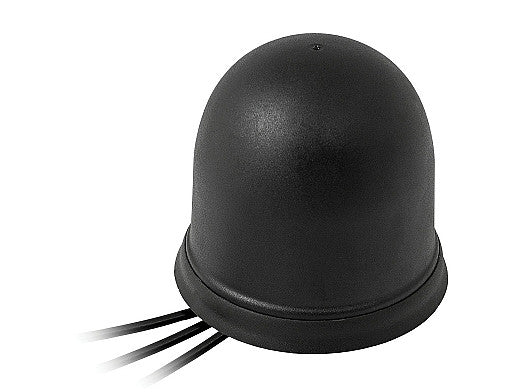

2J6A84BGFa 5G, GNSS screw mount Antenna MIMO IP67/IP69K

This advanced antenna delivers high-performance connectivity for 5G, 4G, 3G, and 2G networks, as well as GNSS satellite navigation. Its robust screw mount design and anti-rotation foam sticker ensure a secure and stable installation, making it ideal for demanding environments. The antenna is ground plane dependent and features a pre-filtered GNSS element for enhanced signal reception. With a compact form factor and customizable cable and connector options, it integrates easily into automotive, industrial, smart city, and remote monitoring applications. Built to withstand harsh conditions, it is certified to IP67, IP69K, and IK09 standards, and operates reliably in extreme temperatures.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1

Installation / Environmental

Built to withstand harsh environmental conditions, this antenna holds IP67, IK09, and IP69K certifications. Its radome is made of ASA material and features a black color, while the antenna base is constructed from Zamak, ensuring durability and resilience. The antenna is RoHS compliant and can operate within a temperature range of -40 to +85 degrees Celsius. All connectors and cables are fully customizable.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External

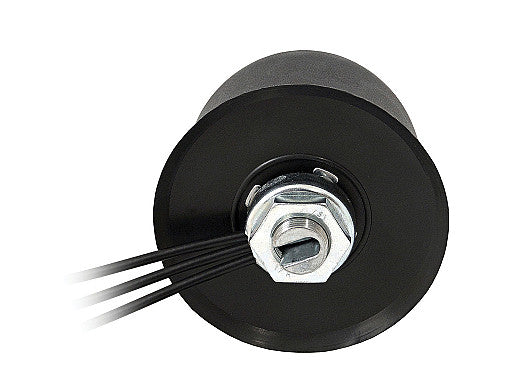

Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.1, ~-15.2, ~-13.5, ~-7.5
VSWR: ~4.8:1, ~1.7:1, ~1.7:1, ~2.6:1
Efficiency (%): ~30.7, ~45.1, ~35.9, ~22.8
Peak Gain (dBi): ~-1.9, ~2.4, ~3.4, ~-0.7
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.2, ~-12.0, ~-10.3, ~-5.0
VSWR: ~4.8:1, ~1.9:1, ~2.1:1, ~3.7:1
Efficiency (%): ~30.2, ~46.1, ~33.9, ~20.4
Peak Gain (dBi): ~-1.8, ~2.4, ~2.6, ~-2.1
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1606
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
