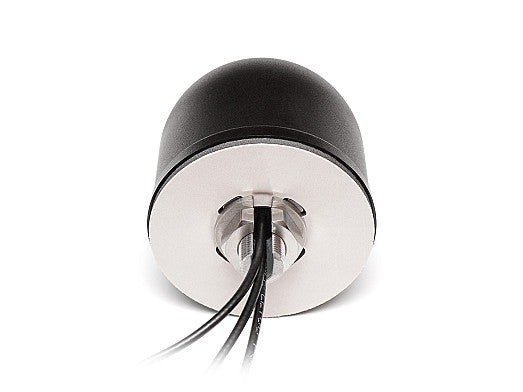

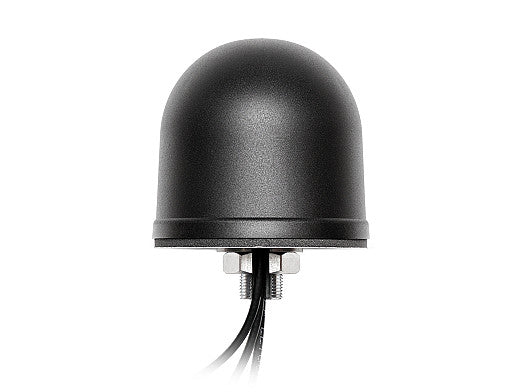

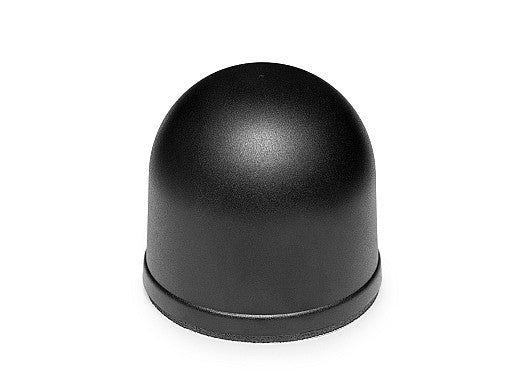

2J6A84BGFa-RB-SP 5G, GNSS screw mount Antenna 3-in-1 IP67/IP69K/IK09

This high-performance antenna is engineered for robust connectivity across 5G, 4G, 3G, 2G cellular networks and GNSS satellite navigation. Its 3-in-1 design features two MIMO cellular elements and one active GNSS element, making it ideal for demanding applications such as automotive telematics, industrial IoT, smart grid, fleet management, and remote monitoring. The omni-directional radiation pattern and linear polarization ensure reliable signal reception and transmission in all directions. The antenna is ground plane dependent and features a pre-filtered GNSS design for enhanced signal quality. Its heavy-duty screw mount and anti-rotation foam sticker provide secure, stable installation in harsh environments. Certified to IP67, IP69K, and IK09 standards, this antenna is built to withstand extreme conditions and is suitable for both indoor and outdoor deployments.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO, Active GNSS
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.1, ~-15.2, ~-13.5, ~-7.5
VSWR: ~4.8:1, ~1.7:1, ~1.7:1, ~2.6:1
Efficiency (%): ~30.7, ~45.1, ~35.9, ~22.8
Peak Gain (dBi): ~-1.9, ~2.4, ~3.4, ~-0.7
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.2, ~-12.0, ~-10.3, ~-5.0
VSWR: ~4.8:1, ~1.9:1, ~2.1:1, ~3.7:1
Efficiency (%): ~30.2, ~46.1, ~33.9, ~20.4
Peak Gain (dBi): ~-1.8, ~2.4, ~2.6, ~-2.1
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1606
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2

Download Datasheet PDF
