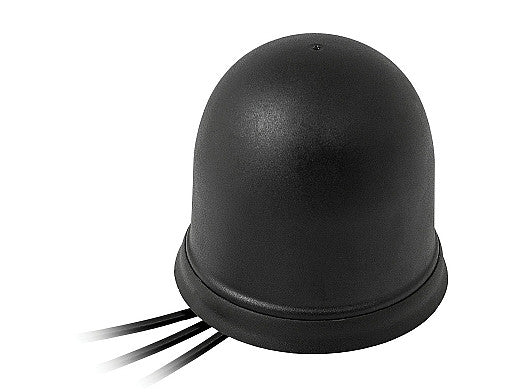

2J6A86BGF 5G, GNSS, Wi-Fi 6E/7 screw mount Antenna IP67/IP69K

This high-performance multi-band antenna is designed for reliable wireless connectivity across a wide range of applications. Supporting 5G, 4G, 3G, 2G, Wi-Fi 6E/7, Bluetooth, ZigBee, ISM, and GNSS (GPS, GLONASS, Galileo, QZSS), it is ideal for telecommunications, wireless networking, fleet management, IoT, remote monitoring, public safety, and smart city deployments. Its robust construction and ground plane dependent design ensure optimal performance and durability in demanding environments.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Installation / Environmental

Compact in size, with dimensions of Ø 77.3 × 65.5 mm, this antenna is designed to fit seamlessly into various installations. It has been certified to IP67, IK09, and IP69K standards, which ensures its durability and protection against ingress from dust, water, and external impacts.

In summary, the 2J6A86BGF antenna is an excellent choice for applications requiring a high-performance, multi-band antenna with customizable options, a compact form factor, and robust protection against environmental elements.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa

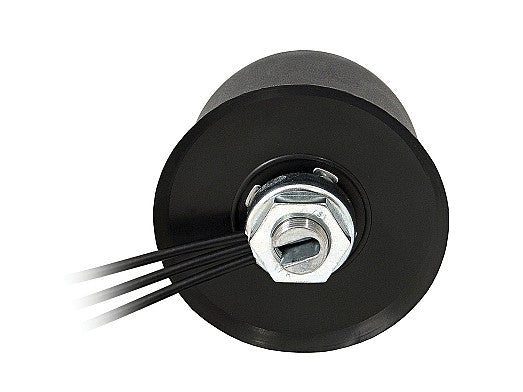

Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-5.3, ~-15.0, ~-12.3, ~-5.8
VSWR: ~4.0:1, ~1.7:1, ~1.8:1, ~3.1:1
Efficiency (%): ~41.0, ~55.7, ~45.1, ~25.4
Peak Gain (dBi): ~-0.9, ~3.1, ~3.7, ~-0.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.2:1, ~1.8:1, ~3.8:1
Efficiency (%): ~60.5, ~38.4, ~33.1
Peak Gain (dBi): ~5.0, ~3.9, ~3.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 35

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1606
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2

Download Datasheet PDF
