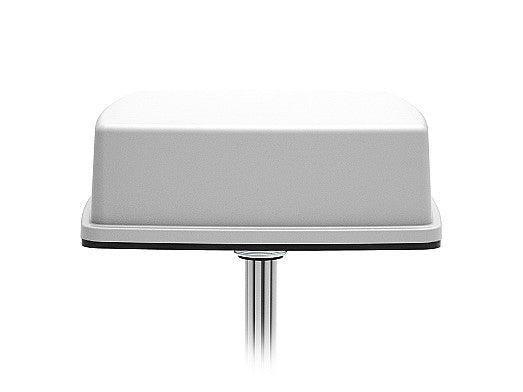

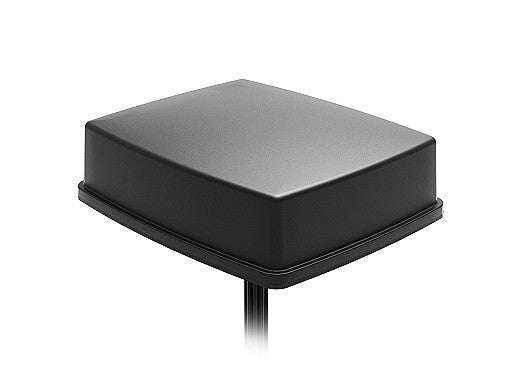

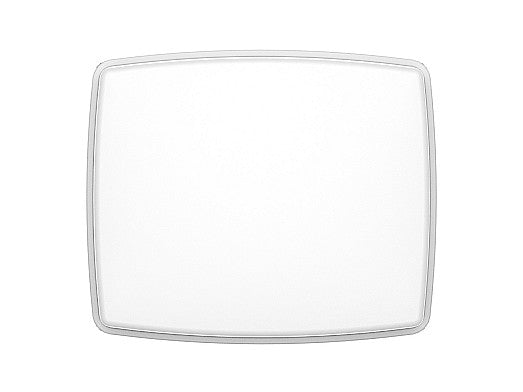

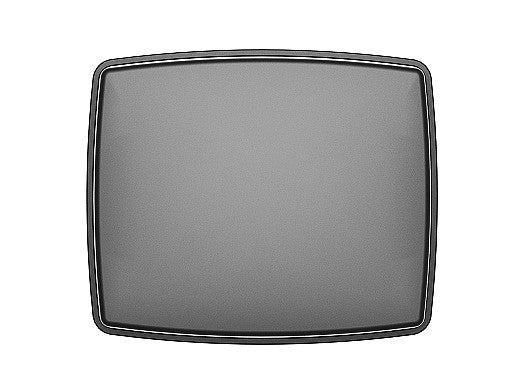

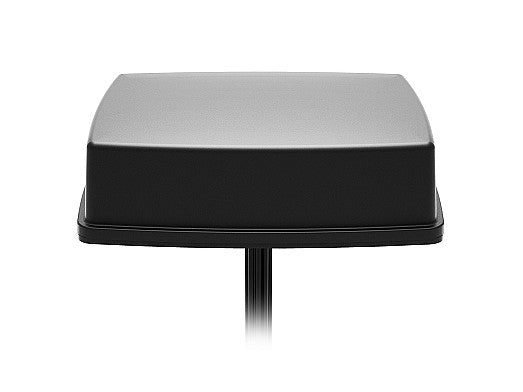

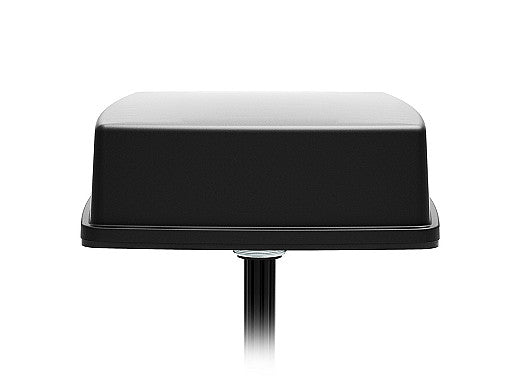

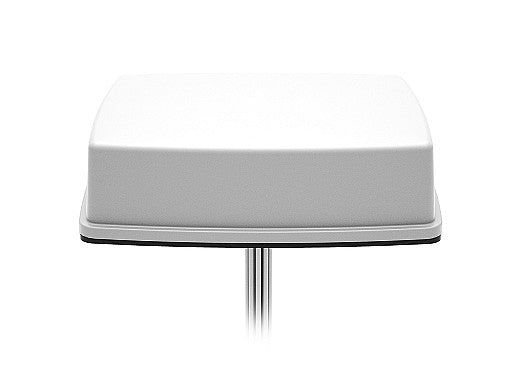

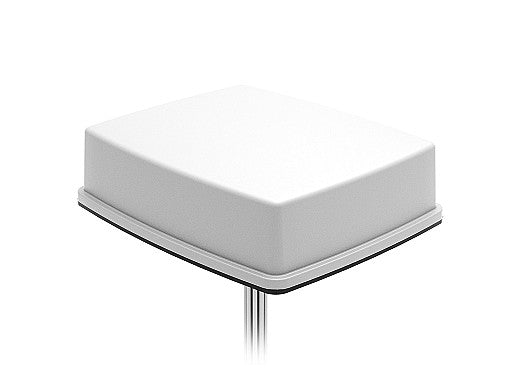

2J6B83Bc 5G screw mount Antenna 4-in-1 SMA-M 300cm IP67/IP69

This high-efficiency 4-in-1 antenna is engineered for advanced 5G NR and 4G LTE connectivity, delivering superior performance and reliability for critical communications. Its ultra-wideband MIMO design ensures robust signal strength and seamless connectivity across multiple frequency bands, making it ideal for mobile routers, public safety, transportation, industrial automation, and more. The low-profile, ground plane independent housing is built for durability and weather resistance, supporting permanent installations on vehicles or fixed structures. Applications include wireless broadband, private networking, cellular data and voice, base stations, critical communications, industrial machinery, automotive, telematics, and utilities.

Connections

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

This ground plane independent antenna can be easily installed with the screw mounting that ensures reliable and permanent installations on vehicles or any structures. The low profile housing measures only 53 mm in height and is manufactured with IP67/IP69 rated ASA UV stable material offering durability with the highest level of protection against water and moisture exposure.
2J6B83Bc connections are standard SMA-Male (5GNR) and come with 300cm long low loss D302 cables, but can be customized as needed. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-14.2, ~-15.4, ~-18.3, ~-9.2
VSWR: ~1.6:1, ~1.6:1, ~1.3:1, ~2.1:1
Efficiency (%): ~40.0, ~45.7, ~44.2, ~36.8
Peak Gain (dBi): ~3.0, ~5.0, ~4.6, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-12.8, ~-15.3, ~-18.5, ~-10.8
VSWR: ~1.9:1, ~1.6:1, ~1.4:1, ~1.9:1
Efficiency (%): ~34.1, ~48.2, ~43.7, ~37.8
Peak Gain (dBi): ~1.1, ~4.8, ~5.1, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-12.7, ~-14.6, ~-19.7, ~-13.5
VSWR: ~1.9:1, ~1.6:1, ~1.3:1, ~1.6:1
Efficiency (%): ~36.4, ~45.6, ~41.2, ~38.7
Peak Gain (dBi): ~3.0, ~4.9, ~4.5, ~4.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-11.8, ~-15.4, ~-20.5, ~-12.8
VSWR: ~1.9:1, ~1.5:1, ~1.3:1, ~1.6:1
Efficiency (%): ~35.8, ~55.4, ~51.0, ~44.6
Peak Gain (dBi): ~2.3, ~5.1, ~5.2, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
