2J6B85JBe-B16J 5G, Wi-Fi 6E/7, ISM pole mount Antenna 8-in-1 SMA-M/RPSMA-M 300cm IP69

This high-efficiency 8-in-1 pole mount antenna is engineered for advanced 5G and Wi-Fi 6E/7 connectivity across 617 MHz to 7125 MHz. Its ultra-wideband MIMO design ensures reliable, high-speed data transmission and robust performance in demanding environments. The antenna is ideal for mobile routers, public safety, transportation, industrial automation, and critical communications where uninterrupted connectivity is essential. Its low-profile, ground plane independent housing is IP67/IP69 rated for maximum durability and protection against water and UV exposure. The antenna supports multi-user MIMO applications, delivering excellent signal quality and coverage for both cellular and Wi-Fi networks.

Connections

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
4× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-M/RPSMA-M
• Cable Length: 300cm
• Cable Type: D302

Installation / Environmental

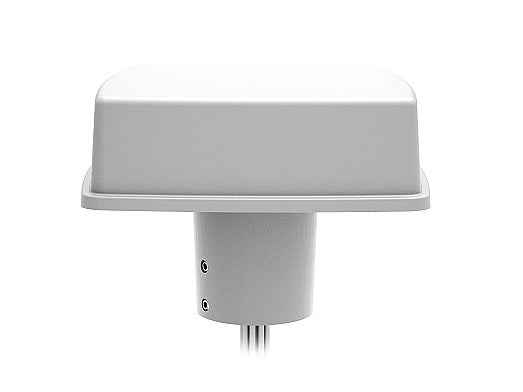

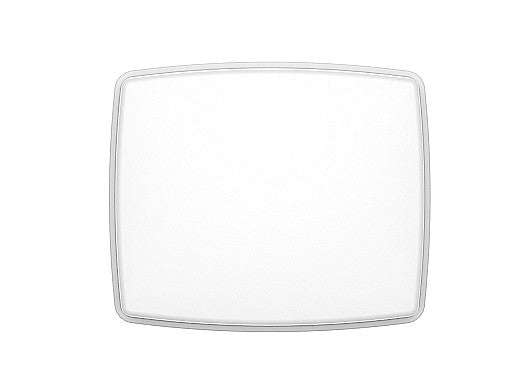

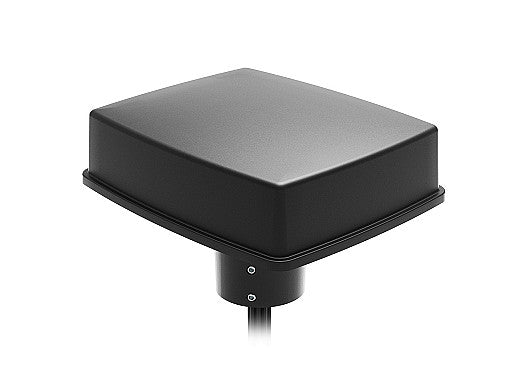

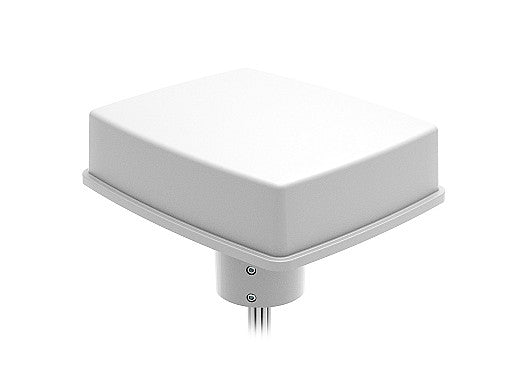

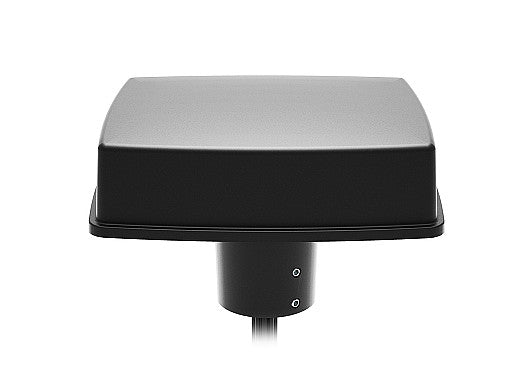

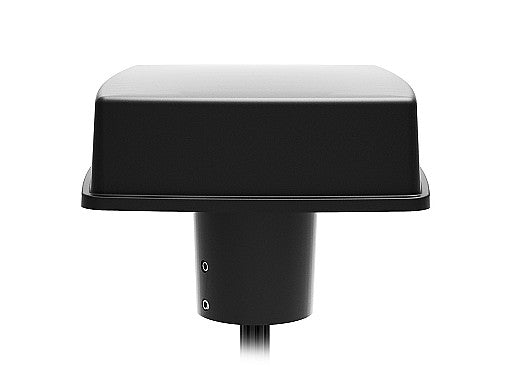

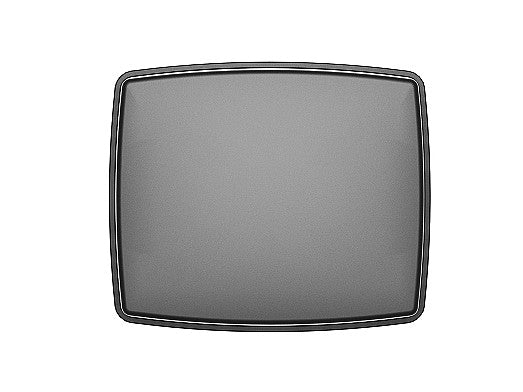

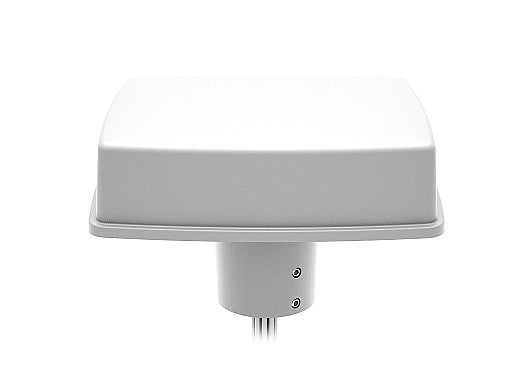

This ground plane independent antenna can be easily installed with the pole mounting adaptor that ensures reliable and permanent installations on vehicles or any structures. The low profile housing measures only 53 mm in height and is manufactured with IP67/IP69 rated ASA UV stable material offering durability with the highest level of protection against water and moisture exposure.
2J6B85JBe-B16J connections are standard SMA-Male (5GNR)/ SMA-Male-RP (WIFI 6E / WIFI 7 ISM) and come with 300cm long low loss D302 (5GNR/WIFI 6E / WIFI 7 ISM) cables, but can be customized as needed. All the cables feed from one side of the antenna housing and are tuned for optimal performance. We offer a wide range of alternative connectors and cables to meet any customization needs. Please contact our highly skilled engineers for assistance in antenna selection or customization requirements.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Screw Mount, Pole Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-14.2, ~-15.4, ~-18.3, ~-9.2
VSWR: ~1.6:1, ~1.6:1, ~1.3:1, ~2.1:1
Efficiency (%): ~40.0, ~45.7, ~44.2, ~36.8
Peak Gain (dBi): ~3.0, ~5.0, ~4.6, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-12.8, ~-15.3, ~-18.5, ~-10.8
VSWR: ~1.9:1, ~1.6:1, ~1.4:1, ~1.9:1
Efficiency (%): ~34.1, ~48.2, ~43.7, ~37.8
Peak Gain (dBi): ~1.1, ~4.8, ~5.1, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-12.7, ~-14.6, ~-19.7, ~-13.5
VSWR: ~1.9:1, ~1.6:1, ~1.3:1, ~1.6:1
Efficiency (%): ~36.4, ~45.6, ~41.2, ~38.7
Peak Gain (dBi): ~3.0, ~4.9, ~4.5, ~4.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-11.8, ~-15.4, ~-20.5, ~-12.8
VSWR: ~1.9:1, ~1.5:1, ~1.3:1, ~1.6:1
Efficiency (%): ~35.8, ~55.4, ~51.0, ~44.6
Peak Gain (dBi): ~2.3, ~5.1, ~5.2, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25

Connection 5 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.5:1, ~1.2:1, ~1.5:1
Efficiency (%): ~55.6, ~51.9, ~37.5
Peak Gain (dBi): ~4.3, ~6.7, ~6.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 6 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.5:1, ~1.2:1, ~1.6:1
Efficiency (%): ~50.0, ~49.7, ~41.1
Peak Gain (dBi): ~4.1, ~6.8, ~6.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 7 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.5:1, ~1.2:1, ~1.6:1
Efficiency (%): ~58.0, ~49.7, ~36.5
Peak Gain (dBi): ~4.4, ~6.7, ~5.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 8 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.6:1, ~1.3:1, ~1.5:1
Efficiency (%): ~52.2, ~44.0, ~33.8
Peak Gain (dBi): ~4.2, ~8.0, ~6.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
