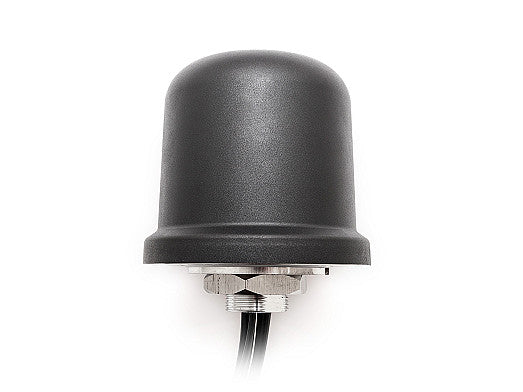

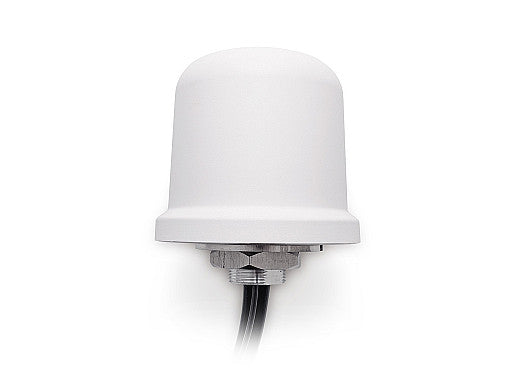

2J7050BGFc 4G/LTE, GNSS, Wi-Fi, ISM screw mount Antenna Medusa SMA-M 300cm

This compact, high-performance antenna delivers reliable multi-technology connectivity in a rugged, weather-resistant housing. Its 4-in-1 design supports dual 4G/LTE MIMO, Wi-Fi/ISM, and GNSS, making it ideal for automotive, telematics, industrial, and outdoor applications where robust data, navigation, and wireless performance are essential. The screw mount and anti-rotation mechanism ensure secure installation on vehicles, machinery, or building exteriors. With ground plane independence and high efficiency, this antenna is well-suited for demanding environments requiring continuous, precise connectivity.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL195/LL100

Installation / Environmental

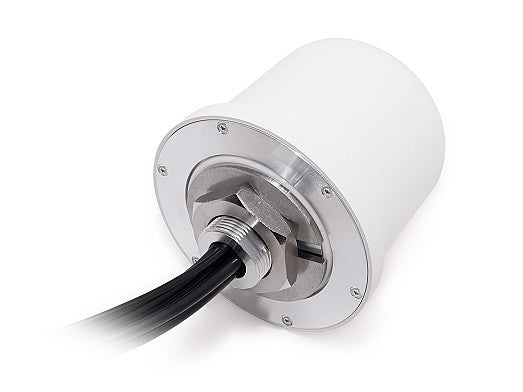

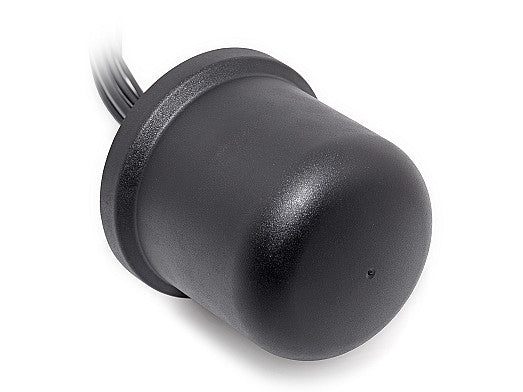

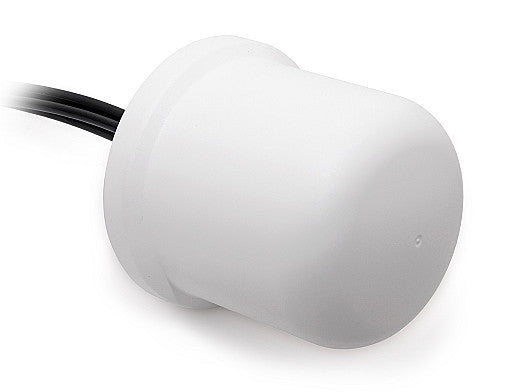

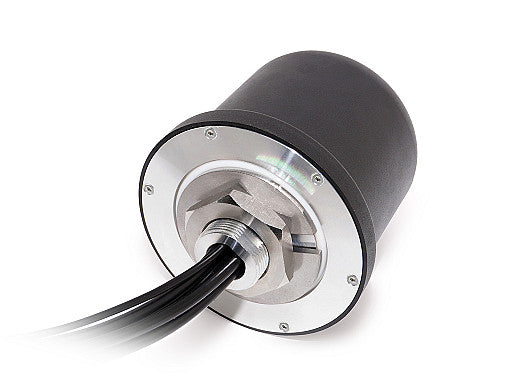

The antenna dome housing (Ø 96 × 90 mm) is manufactured with ASA material offering durability in heavy-duty applications and the first choice for rugged outdoor environments. Fully IP67, IP69 and IK09 certified makes this antenna waterproof and resistant to dust, high temperature, and impact. The antenna base is manufactured with aluminum alloy and comes with a screw mount with an anti-rotation mechanism. 2J7050BGFc is also available with magnetic, pole, and lightweight plastic screw mounting options.
All 4 cables are equipped with a standard SMA-Male connector and 300 cm long LL195/LL100 high quality cables designed for low loss and high performance. It is important to select the right antennas for optimal performance and highly trained experts are available to not only offer a wide range of custom connectors and cables, but also help with antenna selection needs for a perfect product to customer match.
All products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular 4G/LTE MIMO

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.9:1, ~1.6:1, ~1.7:1
Efficiency (%): ~57.4, ~57.0, ~47.0
Peak Gain (dBi): ~2.1, ~4.2, ~3.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular 4G/LTE MIMO

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.9:1, ~1.6:1, ~1.4:1
Efficiency (%): ~62.6, ~54.0, ~57.1
Peak Gain (dBi): ~2.1, ~4.2, ~3.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - Wi-Fi/ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.9:1, ~1.6:1
Efficiency (%): ~58, ~64
Peak Gain (dBi): ~5.6, ~5.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - GNSS

Standards: GPS, QZSS, Galileo, GLONASS
Frequency: 1575.42, 1598-1610 MHz
VSWR: ≤1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3 V, 24 @ 5 V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 15 - 25
Power Consumption (mW): 40.5 - 137.5
Out of Band Rejection (dB): 32
