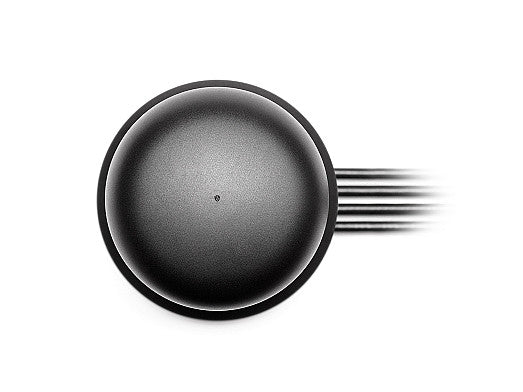

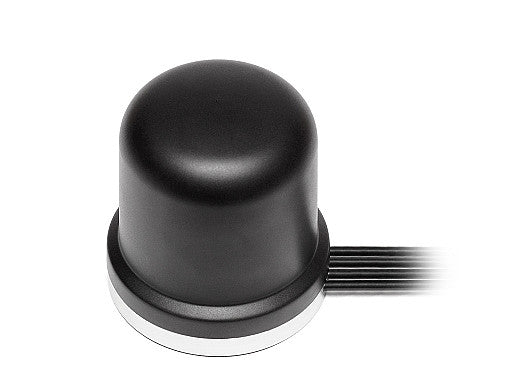

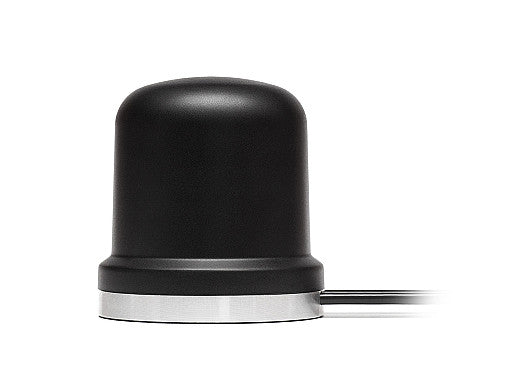

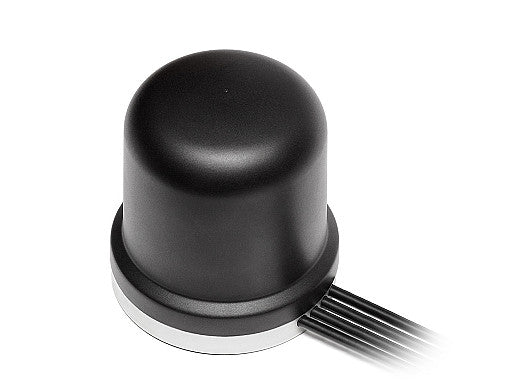

2J7050MGFb 4G/LTE, GNSS, Wi-Fi, ISM magnetic mount Antenna Medusa SMA-M 300cm

This high-performance 4-in-1 antenna is designed for applications requiring reliable connectivity, precision, and high data throughput in a single solution. Its versatile design supports cellular, Wi-Fi, ISM, and GNSS technologies, making it ideal for telematics, industrial automation, transportation, tracking, smart cities, and more. The robust construction ensures durability and consistent performance in demanding environments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2× 2.4-5.0GHz MIMO/WiFi/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL195/LL100

Installation / Environmental

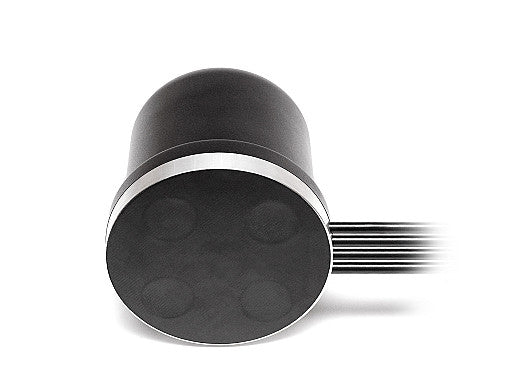

The antenna is IP67, IP69 and IK09 certified and is fully waterproof and resistant to dust, high temperature and impact making it ideal for rugged outdoor applications. The dome housing (Ø 96 × 102 mm) is manufactured with ASA material and the base is manufactured with aluminum alloy with a powerful magnetic mount strong enough for long-term installations but can be conveniently moved for on-the-go applications.  A thin rubber pad is included to protect metal surfaces from scratches during installation or removal. 2J7050MGFb is also available with screw, pole and light weight plastic screw mounting options.

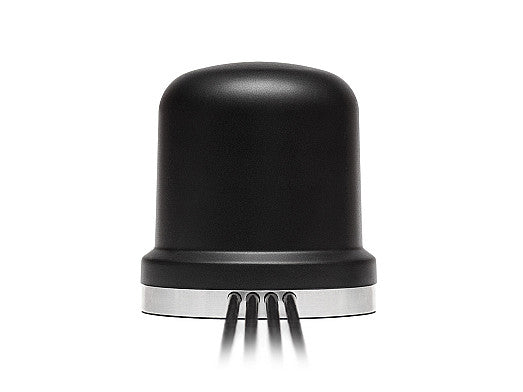

All 4 cables are equipped with standard SMA-Male connector and 300 cm long LL195/LL100 high quality cables. It is important to select the right antennas for optimal performance and highly trained experts are available to not only offer a wide range of custom connectors and cables, but also help with antenna selection needs for a perfect product to customer match.

All products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.7:1, ~1.7:1, ~1.4:1
Efficiency (%): ~50.7, ~52.7, ~58.4
Peak Gain (dBi): ~0.9, ~4.4, ~5.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM (MIMO 1)

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.9:1, ~1.5:1
Efficiency (%): ~40.1, ~45.2
Peak Gain (dBi): ~3.6, ~5.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - 2.4/5.0 GHz ISM (MIMO 2)

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.8:1, ~1.4:1
Efficiency (%): ~45.4, ~45.7
Peak Gain (dBi): ~4.3, ~5.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~3.6
Impedance (Ohm): 50
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.8 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 6
