2J7050MGFc 4G/LTE, GNSS, Wi-Fi, ISM magnetic mount Antenna Medusa SMA-M 300cm

This high-performance 4-in-1 antenna is designed for demanding mobile and industrial applications, combining dual 4G/LTE MIMO, Wi-Fi/ISM, and GNSS functionality in a compact, rugged ASA housing. Its powerful magnetic mount enables quick and secure installation on metal surfaces, making it ideal for both permanent and temporary setups in harsh outdoor environments. The antenna supports reliable connectivity for cellular, Wi-Fi, Bluetooth, ZigBee, and satellite navigation, ensuring stable data, voice, and positioning services even in challenging conditions. Typical use cases include telematics, fleet management, industrial automation, asset tracking, smart home, and critical communications.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL195/LL100

Installation / Environmental

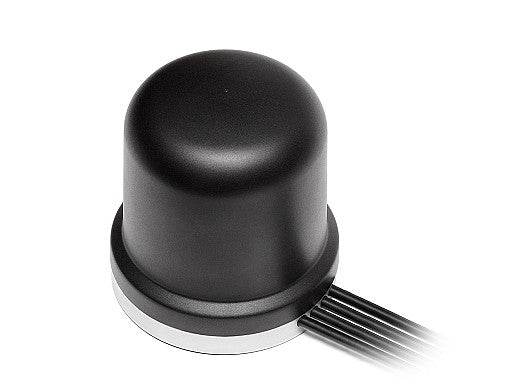

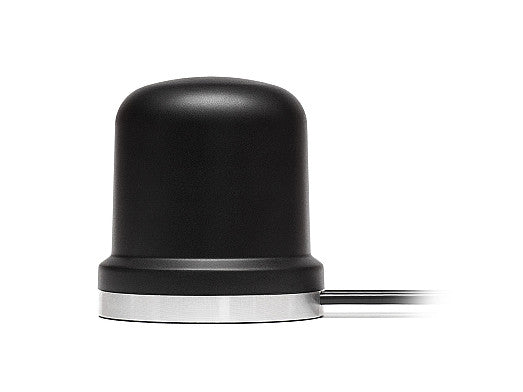

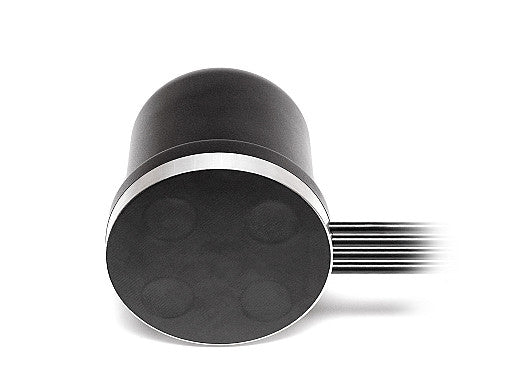

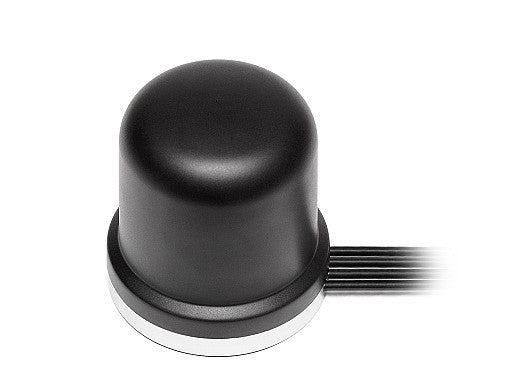

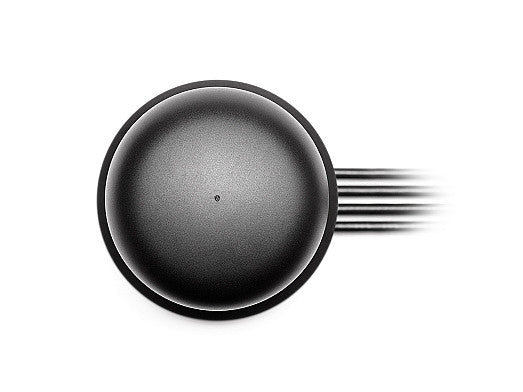

This antenna is fully IP67, IP69 and IK09 certified making it fully waterproof and resistant to dust, high temperatures and impact. The ground plane independent 2J7050MGFc has a dome shape form factor and measures Ø 96 × 102 mm. The antenna housing is manufactured with high quality ASA material and includes a sturdy aluminum alloy base. The powerful magnetic mount is strong enough for long term installations and also allows for easy temporary installations on metal surfaces ideal for on the go applications. A thin rubber layer protects any metal surfaces from scratches or damage during installation or removal.

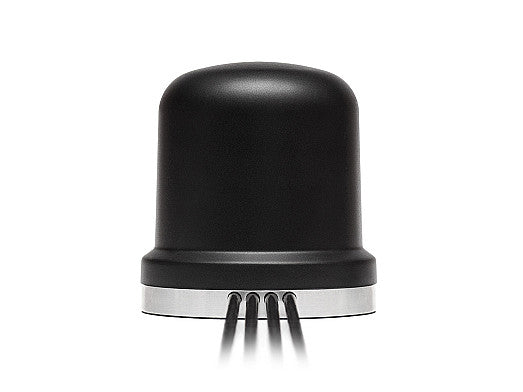

All four cables connect via SMA-Male connector and feed through the side edge of the antenna base. This antenna has been tuned to our standard 300 cm long LL195/LL100 cables for optimal performance. In addition to our standard specifications, we also offer a large selection of alternative cables and connectors to meet all our customers’ expectations. Our engineers are available 24/7 to assist with any customization or antenna selection needs.
All our products are designed and manufactured without hazardous materials while maintaining full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.7:1, ~1.7:1, ~1.5:1
Efficiency (%): ~50.7, ~52.6, ~50.6
Peak Gain (dBi): ~1.3, ~4.8, ~5.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.7:1, ~1.7:1, ~1.4:1
Efficiency (%): ~50.7, ~52.7, ~58.4
Peak Gain (dBi): ~0.9, ~4.4, ~5.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.8:1, ~1.4:1
Efficiency (%): ~45.4, ~45.7
Peak Gain (dBi): ~4.3, ~5.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - GPS/GLONASS

Standards: GPS, QZSS, Galileo, GLONASS
Frequency: 1575.42, 1598-1606 MHz
Passive Gain (dBi): ~3.6
Impedance (Ohm): 50
Voltage Range (V): 1.5 - 3.6
Active Gain (dB): 28 @ 2.7 V
Noise Figure (dB): 1.8 @ 2.7 V
Current Consumption (mA): 9 @ 2.7 V
Power Consumption (mW): 24.3 @ 2.7 V
Saw Filter Type: Pre-Filter
Out of Band Rejection (dB): 43
ESD Protection (kV): 6
