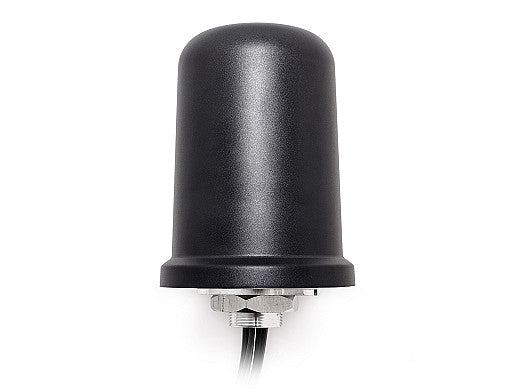

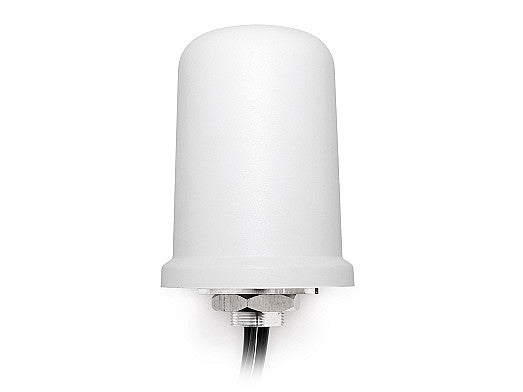

2J7184BGFc 5G, GNSS screw mount Antenna 5-in-1 SMA-M 300cm IP67/IP69

This heavy-duty 5-in-1 antenna is engineered for robust and reliable connectivity, combining four 5G NR MIMO elements with a dedicated GNSS/GPS antenna. It delivers high-performance coverage across 5G, 4G LTE, 3G, and 2G bands, ensuring fast and responsive mobile broadband for demanding applications. The antenna is ideal for public safety, transportation, industrial IoT, fleet management, and GPS-enabled solutions, offering ground plane independence and a rugged, weather-resistant design for permanent installations in challenging environments.

Connections

4× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

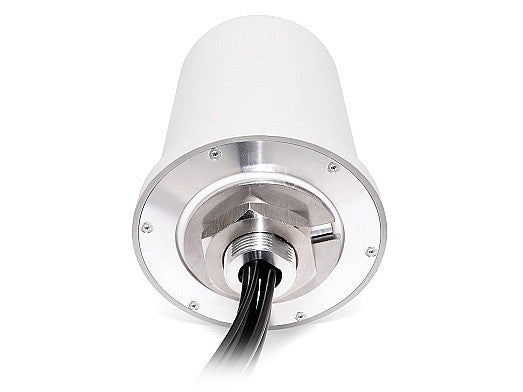

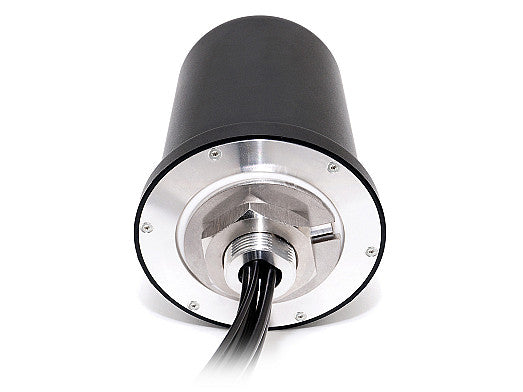

The antenna is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and an Aluminum Alloy base for maximum durability. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.5 to ~-16.8
VSWR: ~3.7:1 to ~1.4:1
Efficiency (%): ~31.0 to ~42.5
Peak Gain (dBi): ~1.2 to ~4.7
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.6 to ~-16.0
VSWR: ~3.7:1 to ~1.5:1
Efficiency (%): ~31.2 to ~42.4
Peak Gain (dBi): ~1.2 to ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.4 to ~-16.7
VSWR: ~3.7:1 to ~1.4:1
Efficiency (%): ~31.5 to ~41.6
Peak Gain (dBi): ~1.3 to ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 4 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.7 to ~-16.8
VSWR: ~3.5:1 to ~1.5:1
Efficiency (%): ~31.2 to ~42.5
Peak Gain (dBi): ~1.6 to ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 5 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1610 MHz
VSWR: ≤1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3 V, 24 @ 5 V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 15 - 25
Power Consumption (mW): 40.5 - 137.5
Out of Band Rejection (dB): 32
