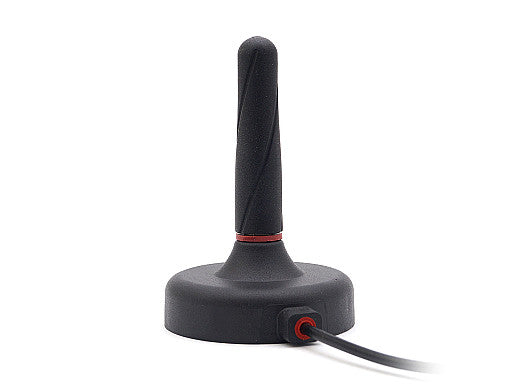

2J7583M 5G magnetic mount Antenna IP67/IP69

This high-performance magnetic mount antenna is designed for ultra-wide band 5G NR, 4G LTE, 3G, and 2G cellular connectivity. Its robust construction and IP67/IP69 protection make it ideal for demanding environments, ensuring reliable operation in harsh weather and industrial conditions. The antenna is ground plane dependent and delivers strong peak gain for enhanced signal quality. Perfect for wireless IoT applications, automotive, transportation, and mobile networks, it supports full backward compatibility with 4G LTE and is suitable for a wide range of use cases including fleet management, smart cities, and industrial monitoring.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Magnetic Mount
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-8.9, ~-15.1, ~-11.7, ~-5.1
VSWR: ~3.1:1, ~1.9:1, ~1.9:1, ~3.6:1
Efficiency (%): ~50.7, ~60.1, ~31.7, ~21.1
Peak Gain (dBi): ~0.3, ~3.4, ~1.5, ~0.1
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35
