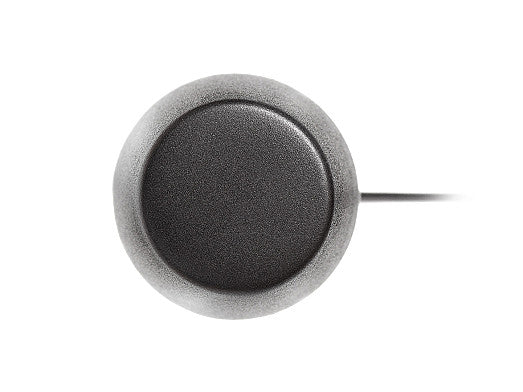

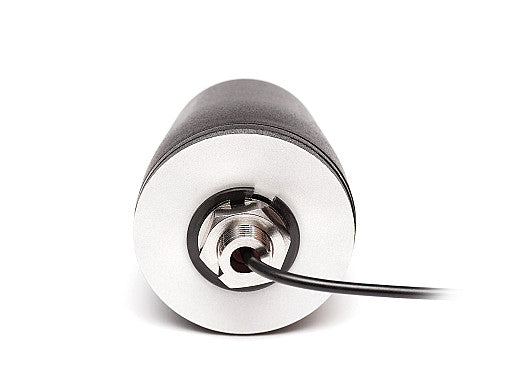

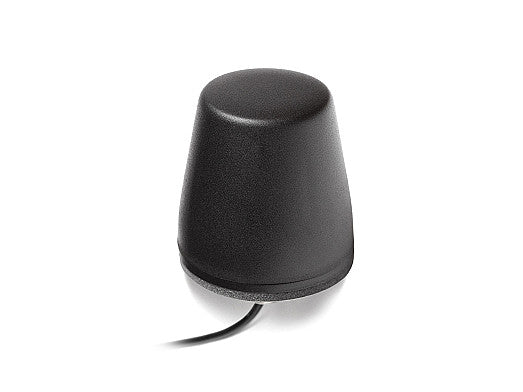

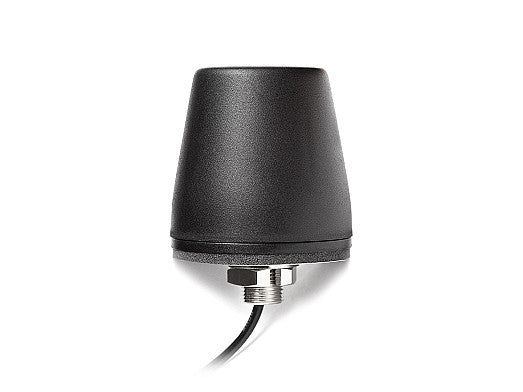

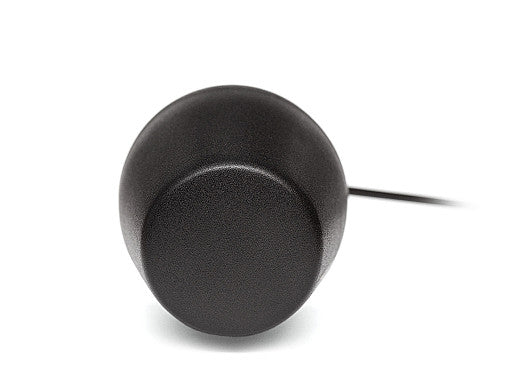

2J7683B 5G screw mount Antenna SMA-M 300cm

This low-profile screw mount antenna is designed for reliable 5G, 4G, 3G, and 2G connectivity across a wide range of frequencies. Its robust construction and IP67/IP69 protection make it ideal for demanding outdoor and industrial environments. The antenna is ground plane independent and delivers high performance with a peak gain of up to 2.9 dBi, making it suitable for applications such as mobile networks, IoT, smart cities, fleet management, and more.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 300cm
• Cable Type: LL100

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-9.7, ~-10.0, ~-10.8, ~-14.7
VSWR: ~2.3:1, ~2.1:1, ~2.0:1, ~1.6:1
Efficiency (%): ~48.1, ~45.9, ~25.2, ~22.5
Peak Gain (dBi): ~2.9, ~2.1, ~0.5, ~-1.0
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
