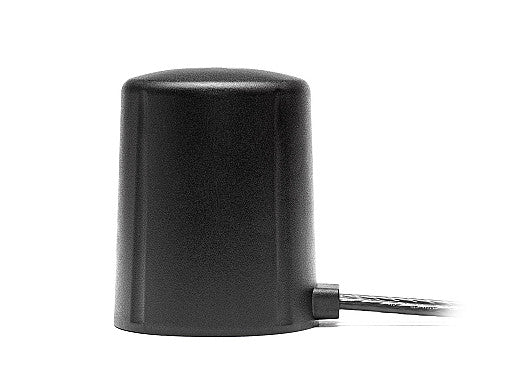

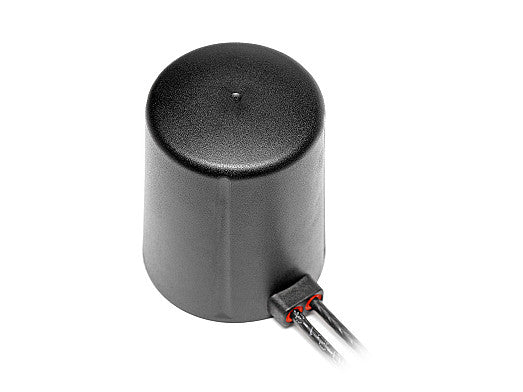

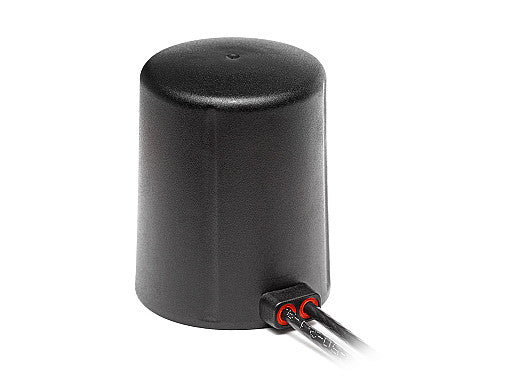

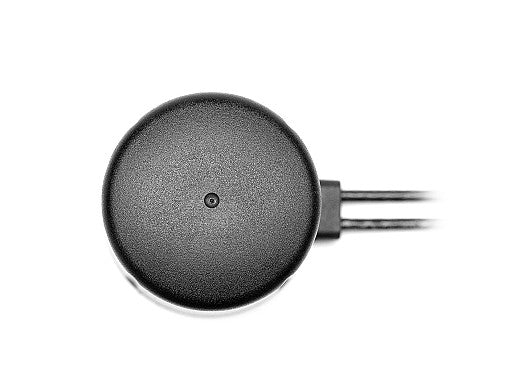

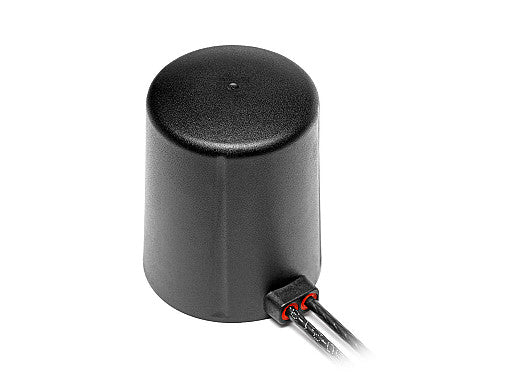

2J7747M 4G/LTE, Wi-Fi, ISM magnetic mount Antenna IP67/IP69/IK09

This rugged magnetic mount antenna is designed for reliable connectivity across 4G/LTE, Wi-Fi, and ISM bands. Its wideband performance and ground plane dependent design make it ideal for demanding environments where durability and high signal quality are essential. The antenna is suitable for a wide range of applications including mobile and cellular networks, IoT, asset tracking, automotive, industrial monitoring, and more. Heavy-duty construction and high ingress protection ratings ensure long-lasting operation in harsh conditions.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Magnetic Mount
Short-Range Wireless Standards: WiFi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.1:1, ~1.4:1, ~2.1:1
Efficiency (%): ~61.4, ~61.9, ~42.4
Peak Gain (dBi): ~2.2, ~3.7, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.7:1, ~1.8:1
Efficiency (%): ~57.4, ~43.6
Peak Gain (dBi): ~4.5, ~4.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
