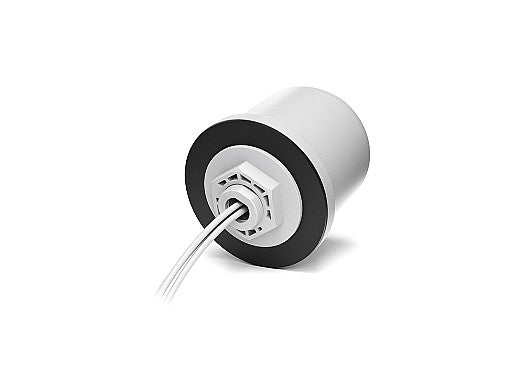

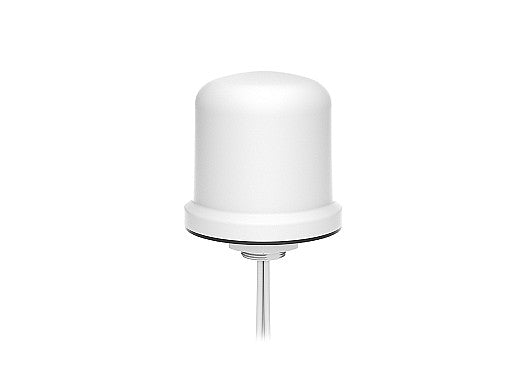

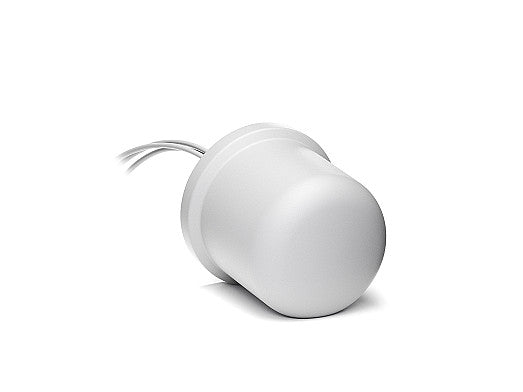

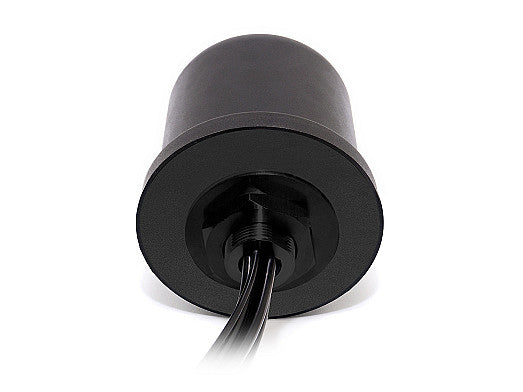

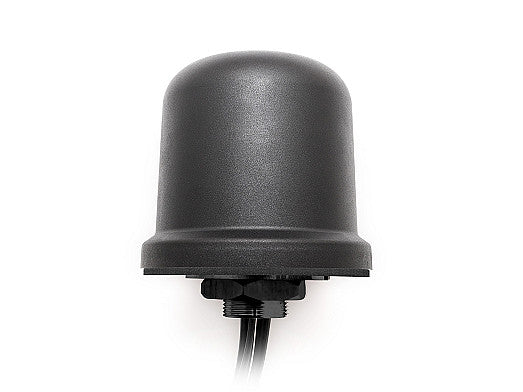

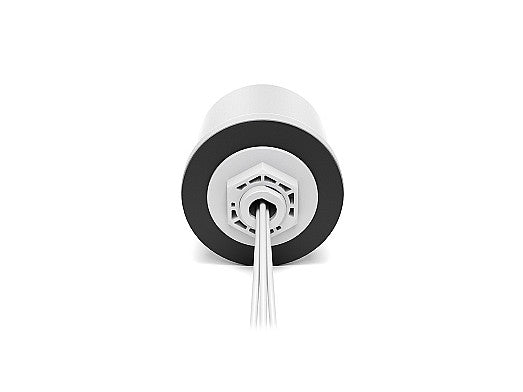

2J7A84BGFa 5G, GNSS screw mount Antenna 3-in-1 SMA-M 300cm IP67/IP69

This heavy-duty 3-in-1 antenna is engineered for robust and reliable connectivity, combining dual 5G MIMO and GNSS/GPS support for high-speed data and precise location tracking. Designed for demanding environments, it ensures stable performance across 5G, 4G, 3G, and 2G networks, making it ideal for public safety, fleet management, industrial IoT, and critical communications. Its rugged construction and screw mount design provide secure installation and long-term durability in outdoor and mobile applications.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm
• Cable Type: LL195

Installation / Environmental

The antenna is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base option. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-7.9, ~-13.3, ~-11.4, ~-12.9
VSWR: ~2.6:1, ~1.7:1, ~1.9:1, ~1.7:1
Efficiency (%): ~44.1, ~56.3, ~44.0, ~42.4
Peak Gain (dBi): ~1.4, ~3.6, ~3.4, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-7.7, ~-12.4, ~-11.9, ~-11.9
VSWR: ~2.7:1, ~1.7:1, ~2.0:1, ~1.8:1
Efficiency (%): ~44.6, ~54.8, ~43.0, ~47.1
Peak Gain (dBi): ~1.5, ~3.6, ~3.5, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1610
VSWR: <=1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3 V, 24 @ 5 V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 15 - 25
Power Consumption (mW): 40.5 - 137.5
Out of Band Rejection (dB): 32
