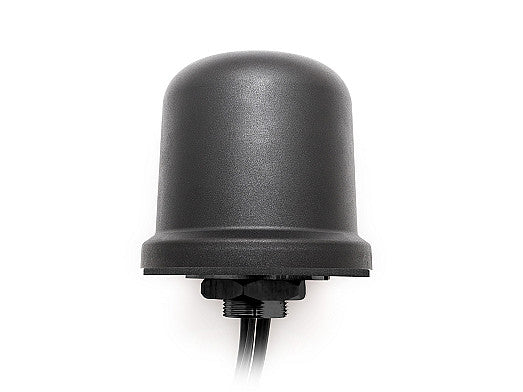

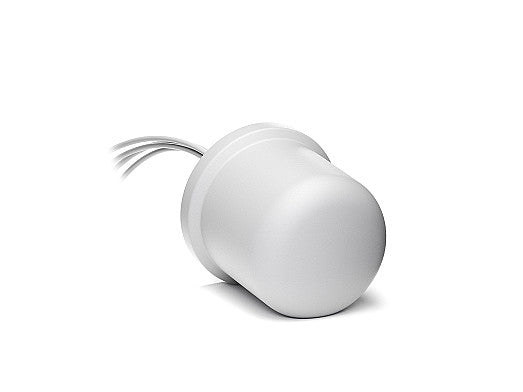

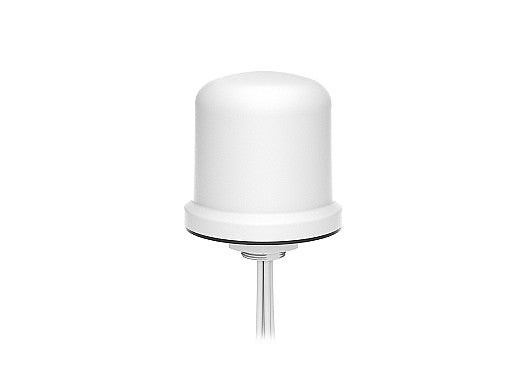

2J7A85Bc 5G, Wi-Fi 6E/7 MIMO screw mount Antenna Medusa IP67/IP69

This heavy-duty 4-in-1 antenna from the Medusa series delivers outstanding performance with dual 5G NR MIMO and dual Wi-Fi 6E/7 MIMO connectivity. Its ultra-wide band design ensures reliable, high-speed communication across multiple technologies, making it ideal for demanding applications such as public safety, transportation, industrial automation, and smart home systems. The antenna's robust housing, ground plane independence, and anti-rotation screw mount provide secure and easy installation, while its high ingress protection and impact resistance ensure durability in harsh environments.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
2× 2.4-5.0-6.0GHz MIMO/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Installation / Environmental

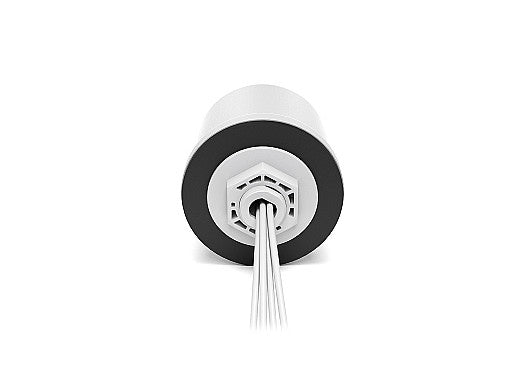

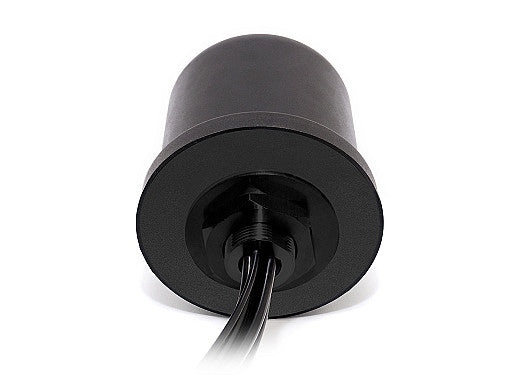

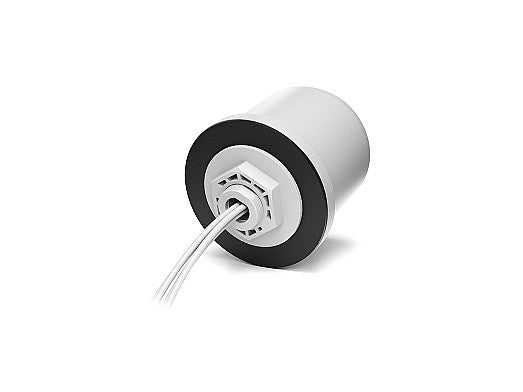

The antenna is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base option. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, SigFox, LoRa
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-7.9, ~-13.3, ~-11.4, ~-12.9
VSWR: ~2.6:1, ~1.7:1, ~1.9:1, ~1.7:1
Efficiency (%): ~45.0, ~56.3, ~43.3, ~42.4
Peak Gain (dBi): ~1.4, ~3.6, ~3.3, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-7.7, ~-12.4, ~-11.9, ~-11.9
VSWR: ~2.7:1, ~1.7:1, ~2.0:1, ~1.8:1
Efficiency (%): ~45.4, ~54.8, ~43.0, ~47.1
Peak Gain (dBi): ~1.5, ~3.6, ~3.5, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.9:1, ~1.6:1, ~1.9:1
Efficiency (%): ~58, ~64, ~65
Peak Gain (dBi): ~5.6, ~5.5, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - 2.4 / 5.0 / 6.0 GHz Tri-Band WIFI 6E / WIFI 7

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency (MHz): 2410-2490, 4920-5925, 5925-7125
VSWR: ~1.9:1, ~1.6:1, ~1.6:1
Efficiency (%): ~58, ~64, ~63.1
Peak Gain (dBi): ~5.6, ~5.5, ~3.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
