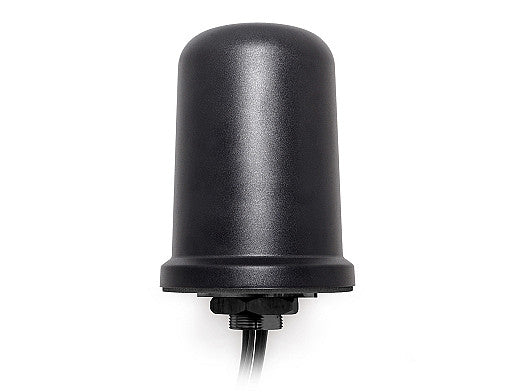

2J7B86BGFa 5G, GNSS, Wi-Fi, ISM screw mount Antenna Medusa 5-in-1

This heavy-duty, next-generation antenna delivers robust performance and reliability for demanding applications in medical emergency, construction, agriculture, and transportation. Its 5-in-1 design integrates advanced 5G MIMO, Wi-Fi, ISM, and GNSS technologies, ensuring high efficiency, ultra-reliable low-latency communication, and precise navigation. The antenna is ground plane independent and features a durable, UV-stable ASA housing with a Zamak plastic base, making it ideal for permanent installations in harsh environments. Typical use cases include 5G networks, infotainment systems, fleet management, GPS-enabled IoT, real-time HD video streaming, and more.

Connections

2× 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G
GPS/GLO/QZSS/Galileo/L1
2× 2.4-5.0GHz MIMO/WiFi/LPWA/BT/ZigBee/RFID/ISM

Installation / Environmental

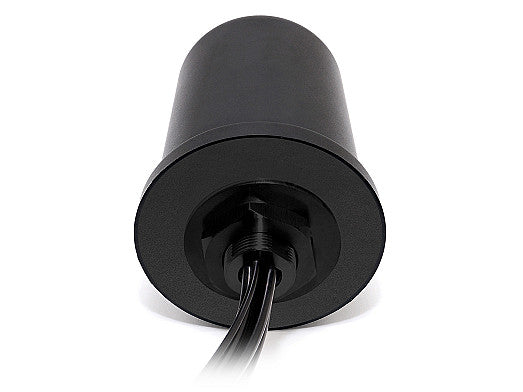

The antenna is protected with a robust and heavy-duty housing made from high-quality acrylonitrile styrene acrylate (ASA) UV stable material, offering excellent thermal resistance, and features a Zamak plastic antenna base as a cost-effective alternative to metal bases. This antenna is dust resistant and waterproof with full IP67, IP69 certification, making it ideal for external applications in harsh environmental conditions. Ground plane independence and reliable screw mount installation provide easy, permanent installations on a wide range of surfaces. A wide range of alternative connectors and cables are available for customization needs, and expert support is offered for special requirements. All products are manufactured without hazardous materials and are fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT, Sigfox, LoRa, RPMA
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-8.2, ~-16.3, ~-17.9, ~-18.9
VSWR: ~2.5:1, ~1.4:1, ~1.4:1, ~1.3:1
Efficiency (%): ~38.5, ~45.8, ~41.6, ~36.6
Peak Gain (dBi): ~0.3, ~3.6, ~4.7, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 2 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-8.2, ~-15.6, ~-13.7, ~-13.2
VSWR: ~2.5:1, ~1.4:1, ~1.7:1, ~1.9:1
Efficiency (%): ~42.2, ~45.3, ~43.0, ~36.7
Peak Gain (dBi): ~0.7, ~3.7, ~4.6, ~3.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 35

Connection 3 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency (MHz): 2410-2490, 4920-5925
VSWR: ~1.5:1, ~1.4:1
Efficiency (%): ~43.4, ~26.2
Peak Gain (dBi): ~5.3, ~1.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency (MHz): 2410-2490, 4920-5925
VSWR: ~1.6:1, ~1.3:1
Efficiency (%): ~41.8, ~30.9
Peak Gain (dBi): ~5.3, ~2.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 5 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1610
VSWR: <=1.5:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3 V, 24 @ 5 V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 15 - 25
Power Consumption (mW): 40.5 - 137.5
Out of Band Rejection (dB): 32

Download Datasheet PDF
