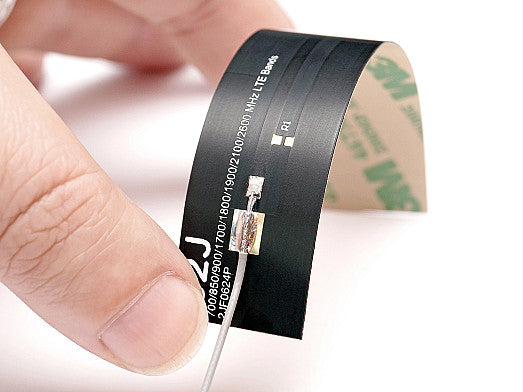

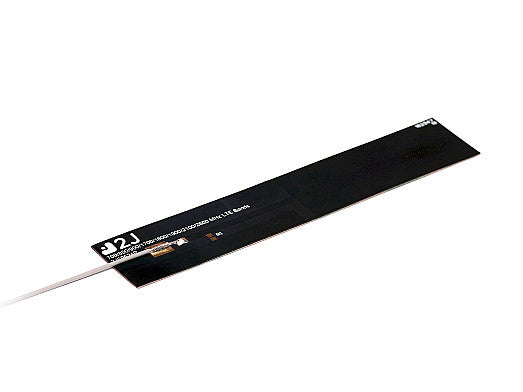

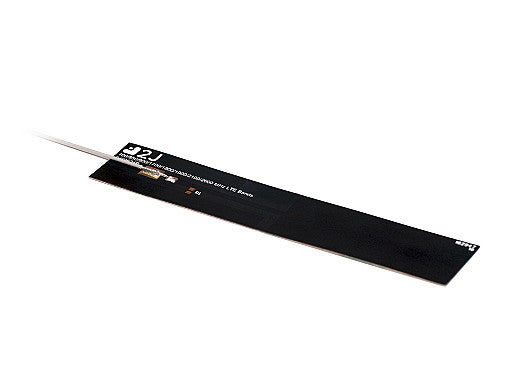

2JF0624P 4G/LTE adhesive mount flexible PCB Antenna

This ultra-thin, flexible PCB antenna is designed for seamless integration into compact devices requiring reliable 4G/LTE, 3G, and 2G connectivity. Its omnidirectional radiation pattern ensures 360° coverage, making it ideal for applications where consistent signal strength is critical. The antenna is ground plane independent and features a self-adhesive backing for easy installation on a variety of surfaces. High efficiency and wideband performance support a broad range of cellular bands, making it suitable for IoT, consumer electronics, robotics, asset tracking, and more.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - Cellular (4G LTE/3G/2G)

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.6:1, ~2.0:1, ~2.8:1
Efficiency (%): ~59, ~68, ~59
Peak Gain (dBi): ~1.0, ~3.4, ~2.5
Polarisation: Linear
Max. Input Power (W): 25
