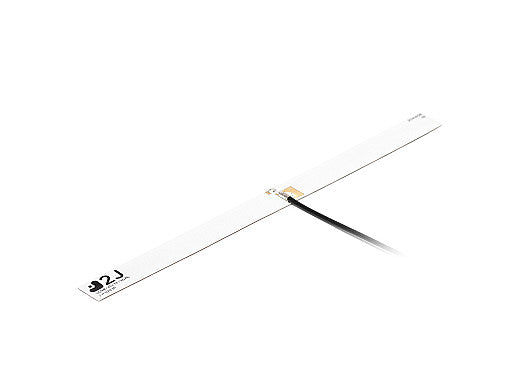

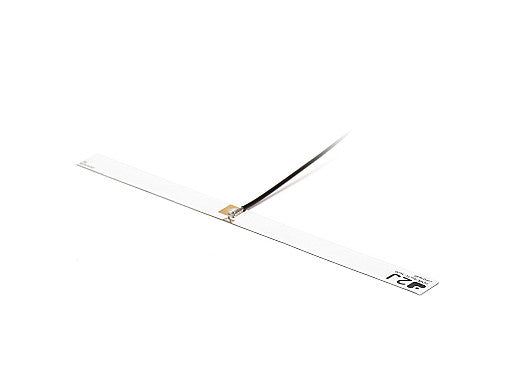

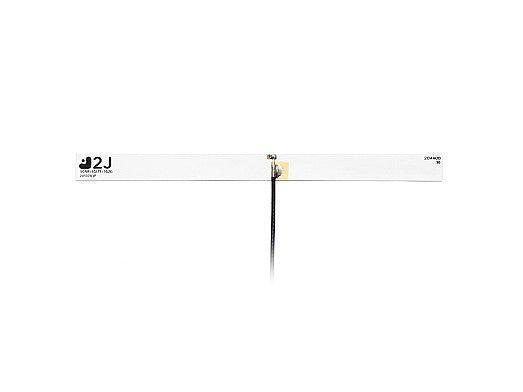

2JF0783P 5G flexible adhesive Antenna U.FL 18cm

This high-performance flexible adhesive antenna is designed for seamless integration into space-constrained devices, offering robust global cellular and broadband connectivity across 5G, 4G, 3G, and 2G networks. Its ultra-thin, ground plane independent design ensures reliable operation on both flat and curved surfaces, making it ideal for IoT, M2M, wearables, automation, and other demanding applications. The antenna delivers stable peak gain and efficiency across all supported bands, ensuring optimal data transmission and device performance in industrial, commercial, and consumer environments.

• Ultra-wideband coverage from 617 MHz to 5925 MHz
• Flexible polymer construction for easy installation
• Peel-and-stick adhesive mounting for quick integration
• High efficiency and low power consumption
• Suitable for extreme temperature environments

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: U.FL
• Cable Length: 18cm
• Cable Type: 1.37mm Mini-Coax

Installation / Environmental

The antenna is designed with ultra-thin dimensions of 125 x 9 x 0.2mm and strong adhesive mounting, allowing for easy installation to the inside of plastic housings where space is restricted, including curved surfaces. It is manufactured with high-grade flexible polymer and is also available in rigid fiberglass materials. It can withstand extreme temperatures ranging between -40°C and +85°C, making it ideal for extreme indoor or outdoor device applications. The 2JF0783P comes with a standard U.FL connector and 1.37mm Mini-Coax cable measuring 180mm in length. Our team offers a wide range of alternative connectors and cables for customization.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: 5G
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-7.3, ~-7.5, ~-10.6, ~-13.1
VSWR: ~3.2:1, ~2.7:1, ~2.0:1, ~1.8:1
Efficiency (%): ~45.3, ~51.4, ~51.0, ~46.5
Peak Gain (dBi): ~0.7, ~2.9, ~4.5, ~6.3
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
