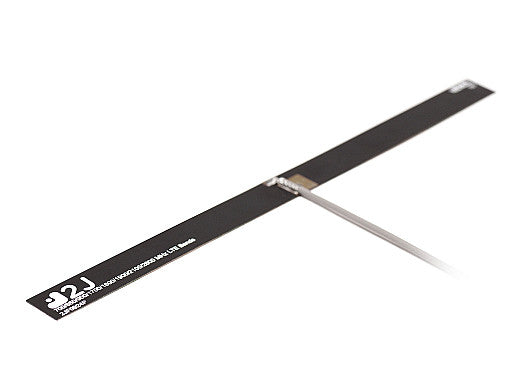

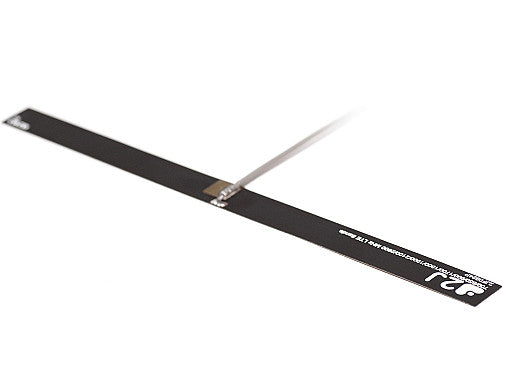

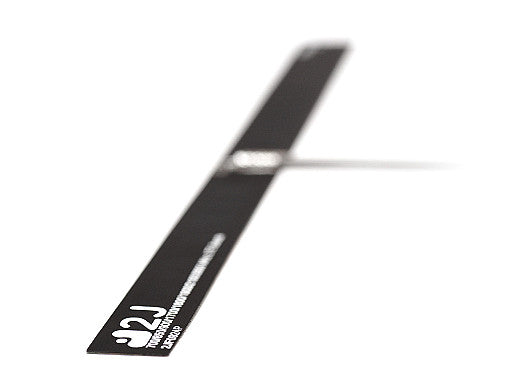

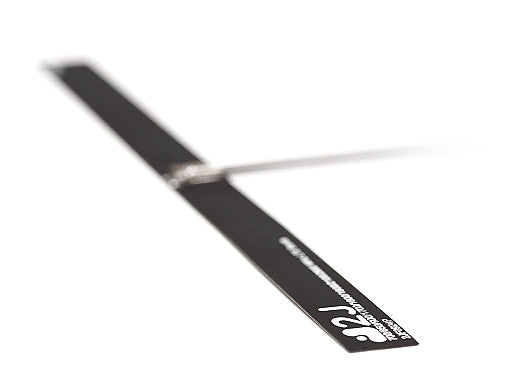

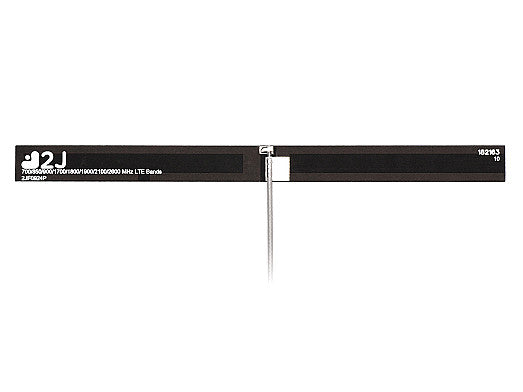

2JF0924P 4G/LTE adhesive mount flexible Antenna U.FL 15cm

This ultra-thin, flexible antenna is designed for seamless integration into devices requiring reliable 4G/LTE, 3G, and 2G connectivity. Its self-adhesive backing and flexible PCB construction make it ideal for internal installations where space is limited. The antenna delivers omnidirectional coverage and high performance across a wide frequency range, making it suitable for applications such as IoT devices, wearables, asset tracking, and consumer electronics.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: U.FL-Male
• Cable Length: 15cm
• Cable Type: MC137

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
Mounting: Adhesive Mount Flexible
Type: Single

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
Efficiency (%): ~50.3, ~50, ~58.8
Peak Gain (dBi): ~0.2, ~2.2, ~4.5
VSWR: ~2.5:1, ~2.4:1, ~2.3:1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
