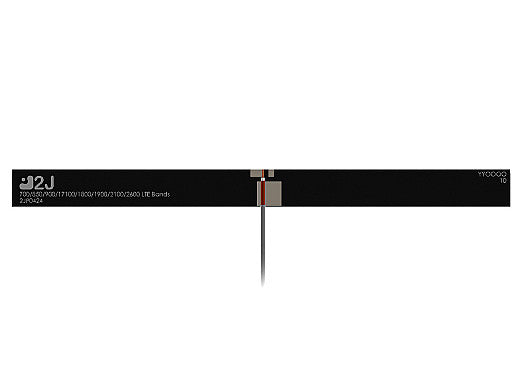

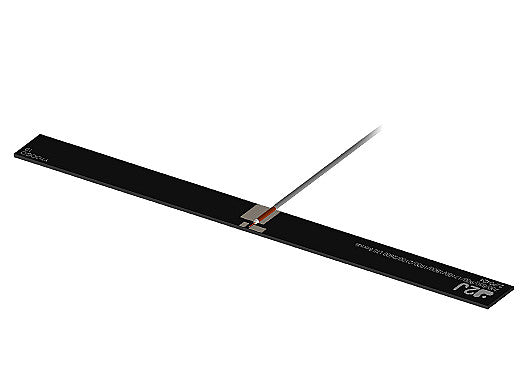

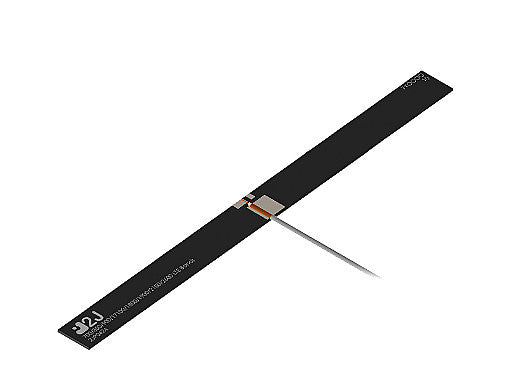

2JP0424P 4G/LTE adhesive mount Antenna U.FL 15cm

This high-efficiency rigid fiberglass antenna is designed for reliable 4G LTE, 3G, and 2G connectivity in a wide range of internal applications. Its self-adhesive mounting makes installation quick and easy, while the ground plane independent design ensures consistent performance across various device types. The antenna supports a wide frequency range, making it suitable for consumer electronics, IoT devices, robotics, wearables, asset tracking, and more. Its compact form factor is ideal for space-constrained environments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: U.FL-Male
• Cable Length: 15cm
• Cable Type: MC137

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount Rigid
Location: Internal
Cellular Technologies: 4G/LTE, 3G, 2G
Type: Single

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G and 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~3.4:1, ~2.6:1, ~1.9:1
Efficiency (%): ~56, ~66, ~78
Peak Gain (dBi): ~1.2, ~4.0, ~5.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
