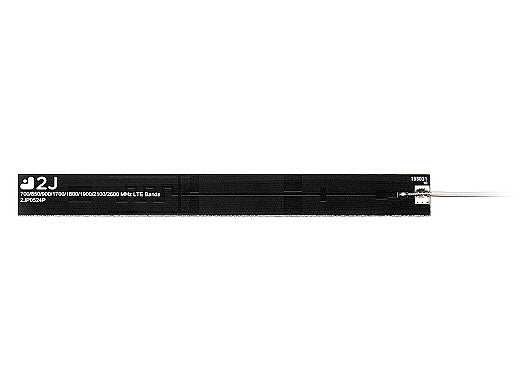

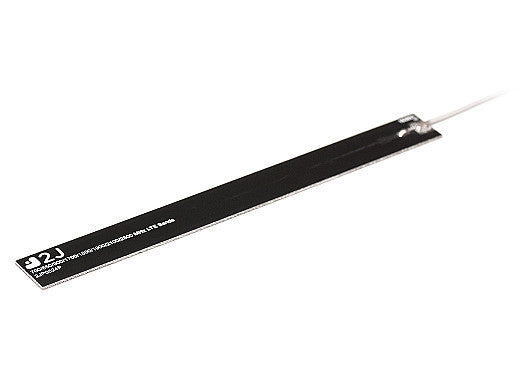

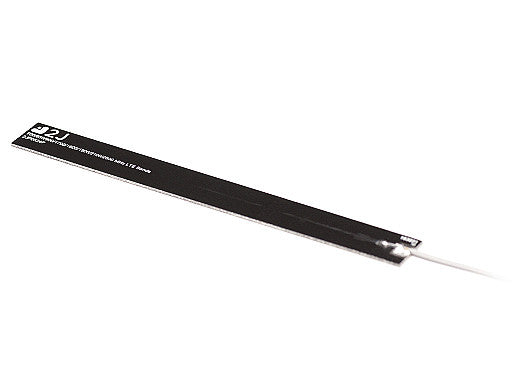

2JP0524P 4G/LTE adhesive mount rigid internal Antenna

This high-performance rigid internal antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide frequency range. Its ground plane independent design and self-adhesive mounting make it ideal for seamless integration into compact devices and embedded applications. The antenna is suitable for use in consumer electronics, robotics, IoT devices, asset tracking, and more, providing stable wireless performance in demanding environments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount Rigid
Type: Single

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.9:1, ~1.6:1, ~1.4:1
Efficiency (%): ~50, ~53, ~60
Peak Gain (dBi): ~0.8, ~2.2, ~2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
