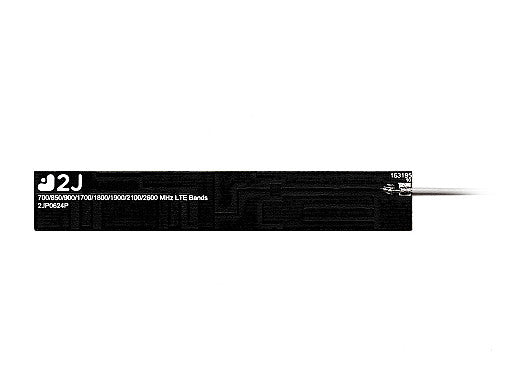

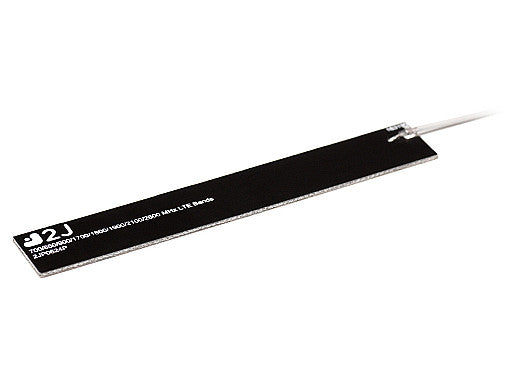

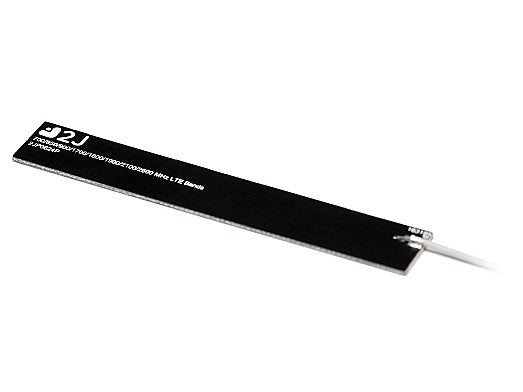

2JP0624P 4G/LTE adhesive mount rigid internal Antenna] U.FL 15cm

This high-performance rigid internal antenna is designed for reliable 4G LTE, 3G, and 2G connectivity across a wide frequency range. Its self-adhesive mounting and ground plane independence make it ideal for integration into a variety of compact devices and applications where internal installation is required. The antenna delivers strong peak gain and efficiency, supporting robust wireless communication for IoT, consumer electronics, robotics, asset tracking, and more.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: U.FL-Male
• Cable Length: 15cm
• Cable Type: MC137

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Monopole
Cellular Technologies: 4G/LTE
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT, Cat-X, Cat-Mx, Cat-NBx
Mounting: Adhesive Mount Rigid
Type: Single

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.5:1, ~1.8:1, ~2.1:1
Efficiency (%): ~45, ~48, ~48
Peak Gain (dBi): ~0.3, ~1.5, ~2.8
Polarisation: Linear
Max. Input Power (W): 25
