2JP1180P 5G, UHF, 4G/LTE, 3G, 2G Antenna adhesive U.FL 18cm

This ultra-wideband rigid fiberglass antenna is designed for seamless integration into devices requiring reliable 5G, UHF, 4G/LTE, 3G, and 2G connectivity. Its compact, low-profile form factor and ground plane independence make it ideal for space-constrained applications such as IoT devices, wearables, robotics, and portable wireless equipment. The antenna delivers stable peak gain and high efficiency across the entire 410 MHz to 5925 MHz range, ensuring robust data transmission and low latency for mission-critical and high-performance applications. Suitable for both industrial and consumer environments, it withstands extreme temperatures and offers easy installation with strong self-adhesive mounting.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G/UHF

Connector & Cable

• Connector Type: U.FL
• Cable Length: 18cm
• Cable Type: 1.37mm Mini-Coax

Installation / Environmental

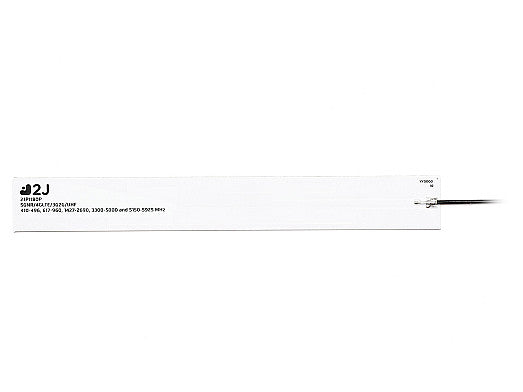

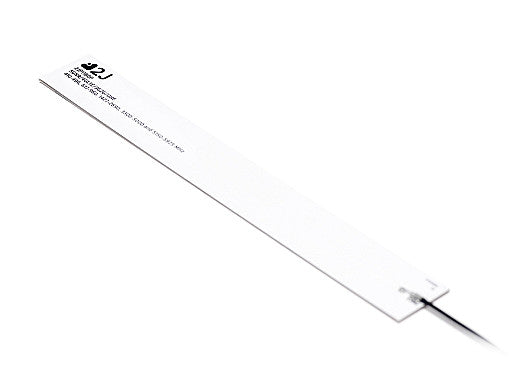

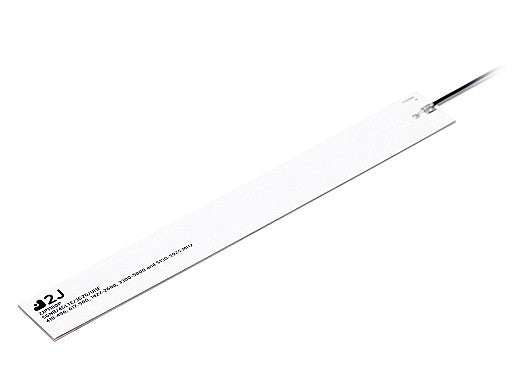

The antenna is designed with ultra-thin dimensions of 155 x 19.5 x 0.2mm and features strong adhesive mounting for easy installation inside plastic housings, including side walls. It is manufactured from high-grade rigid fiberglass and can withstand extreme temperatures from -40°C to +85°C, making it suitable for demanding indoor or outdoor applications. The 2JP1180P comes with a standard U.FL connector and 1.37mm Mini-Coax cable measuring 180mm in length. Custom cable and connector options are available upon request.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Cellular Technologies: 5G, 4G/LTE, 3G, 2G
Location: Internal
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Adhesive Mount Rigid
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G/UHF

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G/UHF
Frequency: 410-496, 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-5.9, ~-14.1, ~-13.2, ~-9.3, ~-9.1
VSWR: ~3.1:1, ~1.5:1, ~1.7:1, ~2.6:1, ~2.6:1
Efficiency (%): ~26.0, ~53.0, ~63.8, ~31.5, ~30.8
Peak Gain (dBi): ~-3.2, ~1.6, ~4.2, ~0.4, ~2.7
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
