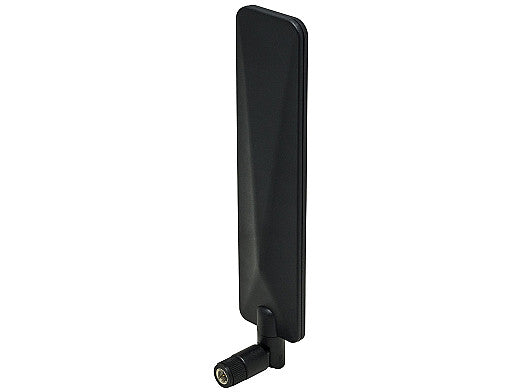

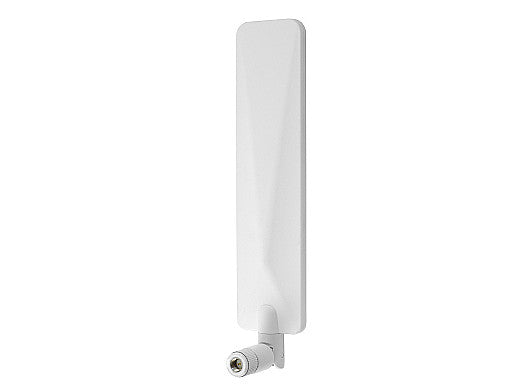

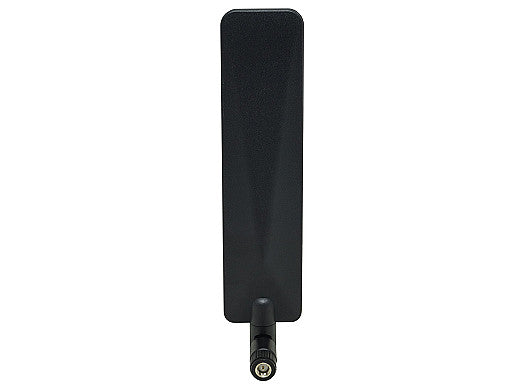

2JW0124-C868B 4G/LTE, 3G, 2G swivel Antenna RPSMA-M

This ultra wideband antenna is designed for worldwide cellular applications, supporting 4G, 3G, and 2G standards. It delivers high efficiency and stable connectivity for access points, routers, small base stations, repeaters, boosters, fleet management, and telematics devices. The antenna features a 90-degree swivel for flexible orientation and easy installation, making it ideal for MIMO systems and multiple antenna setups. Its compact, ground plane independent design ensures reliable performance in a variety of environments. The housing is made from UV-stable PC/ABS for durability and is intended for indoor or internal use only. Typical applications include infotainment systems, HD video transmission, connected vehicles, gateways, public transportation, logistics, and more.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: RPSMA-M

Installation / Environmental

Connector types can be selected between SMA-Male, RP SMA-Male or N-Male. The antenna can freely swivel up to 90 degrees, allowing flexibility in orientation for easier installation or multiple antenna mounting options. The housing is built out of UV Stable PC/ABS with an operating temperature range of -40°C to +85°C. All antennas are manufactured using RoHS and REACH compliant materials.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Connector Mount
Type: Single

Connection 1 - CELLULAR/4G LTE

Standards: GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO, LTE
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.4:1, ~1.6:1, ~2.2:1
Efficiency (%): ~62, ~75, ~50
Peak Gain (dBi): ~0.4, ~2.6, ~1.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
