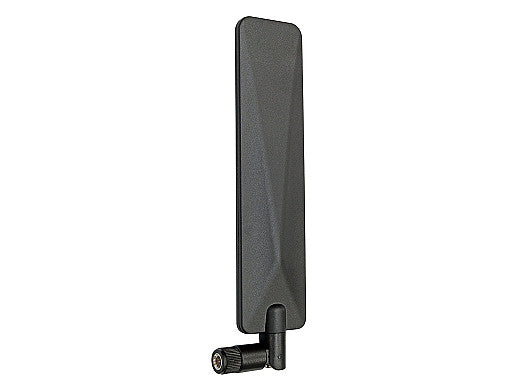

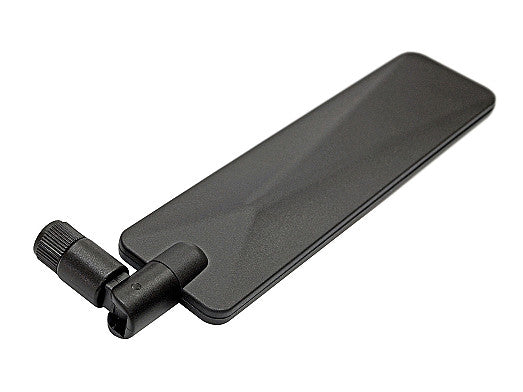

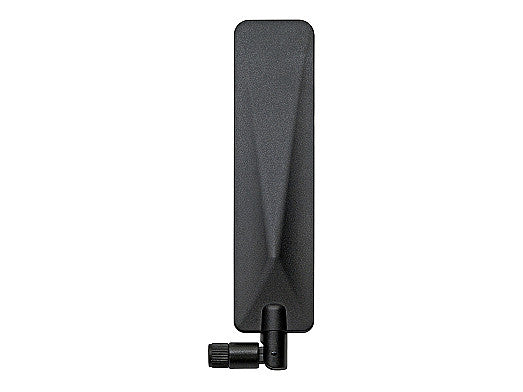

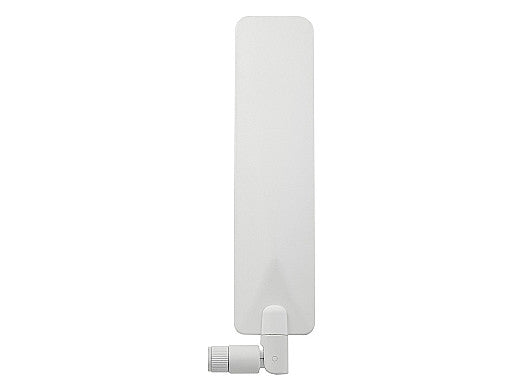

2JW0180z-C868B 5G, 4G/LTE, 3G, 2G, UHF hinged swivel Antenna Machete SMA-M

This ultra wideband antenna delivers high performance and full bandwidth coverage for 5G, 4G/LTE, 3G, 2G, and UHF frequencies, making it ideal for a wide range of wireless applications. Its ground plane independent dipole design ensures reliable connectivity and consistent signal strength, even in challenging environments. The hinged swivel form factor allows for flexible positioning and easy installation, making it suitable for mobile networks, IoT, asset tracking, automotive, and industrial applications.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G/UHF

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 5G, 4G, 3G, 2G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Connector Mount
Type: Single

Connection 1 - 5GNR/4GLTE/FirstNet/CBRS/LPWA/3G/2G/UHF

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G/UHF
Frequency: 410-496, 617-960, 1427-2690, 3300-5000, 5150-5925 MHz
Return Loss (dB): ~-4.8, ~-14.3, ~-8.2, ~-6.8, ~-10.6
VSWR: ~3.8:1, ~1.7:1, ~2.5:1, ~4.1:1, ~2.1:1
Efficiency (%): ~20.6, ~40.8, ~60.0, ~40.8, ~30.9
Peak Gain (dBi): ~-4.5, ~0.5, ~2.1, ~1.5, ~2.5
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
