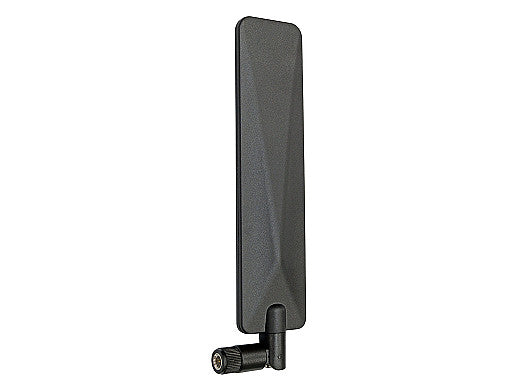

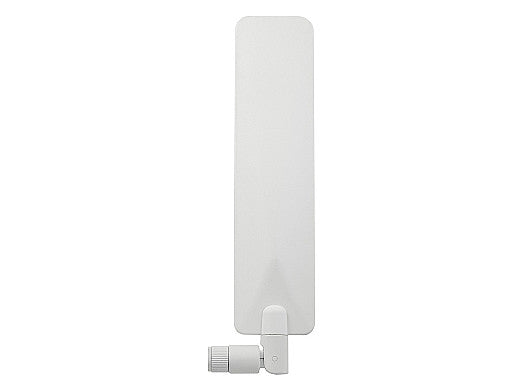

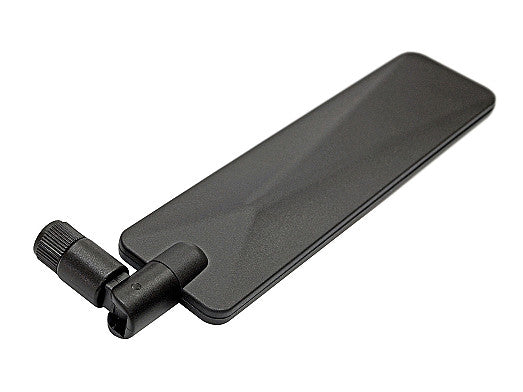

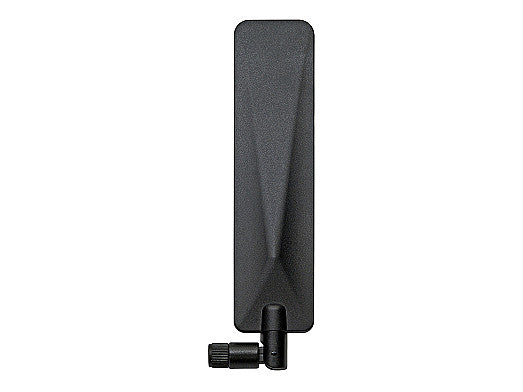

2JW0183z-C276B 5G swivel Antenna Machete SMA-M

This ultra wide band antenna delivers high performance and global coverage for 5G NR, 4G LTE, 3G, and 2G/CDMA cellular networks. Its innovative hinged swivel design allows flexible positioning—straight, right angle, or 45 degrees—to maximize signal strength and minimize interference with nearby antennas. The omni-directional radiation pattern ensures 360-degree signal quality, making it ideal for demanding environments. Suitable for terminals, base stations, routers, IoT devices, smart home/office, vending machines, metering, and more.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

• Connector Type: SMA-M

Installation / Environmental

The antenna housing is manufactured from a ASA UV Stable material, allowing it to withstand extreme temperatures ranging between -40C to +85C and making it ideal for outdoor applications. The design dimensions are 171 × 38 × 13.8 mm. This antenna is ground plane independent allowing for a wide range of installation options with minimal restrictions. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G and 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz): 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB): ~-12.4, ~-11.4, ~-12.6, ~-10.6
VSWR: ~1.8:1, ~1.9:1, ~1.9:1, ~2.1:1
Efficiency (%): ~80.1, ~75.0, ~70.2, ~68.5
Peak Gain (dBi): ~3.6, ~3.2, ~3.5, ~3.5
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
