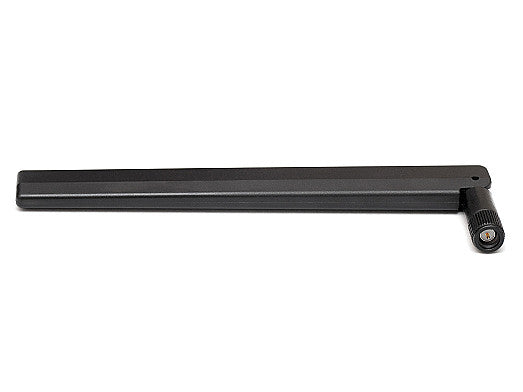

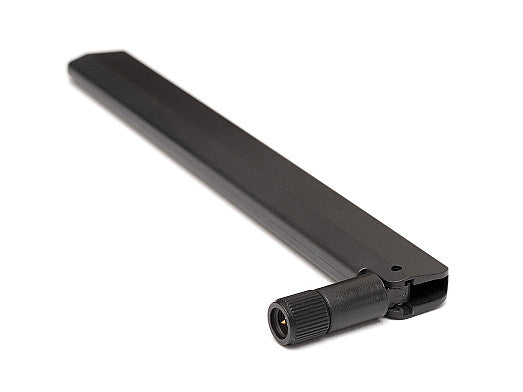

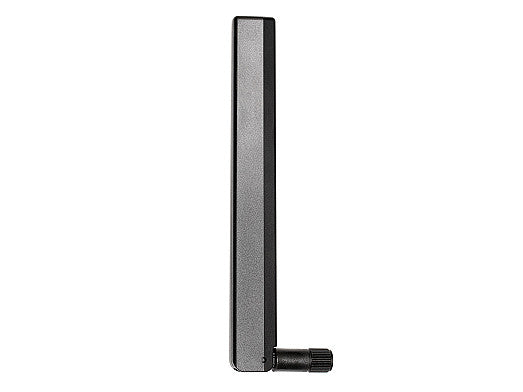

2JW0924-C952B 4G/LTE swivel Antenna SMA-M

This ultra wideband antenna delivers high performance for global 4G LTE connectivity with full 2G and 3G fallback support. Designed for consistent and stable data throughput, it is ideal for use in access points, routers, small base stations, femto cells, repeaters, boosters, fleet management, and telematics devices requiring reliable cellular communication. The antenna features a 360-degree swivel and a hinged connector up to 90 degrees, providing flexible orientation and easy installation, especially in multi-antenna setups or tight spaces.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - Cellular/4G LTE

Standards: GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO, LTE
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.7:1, ~1.5:1, ~1.3:1
Efficiency (%): ~54, ~60, ~67
Peak Gain (dBi): ~0.6, ~2.6, ~2.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
