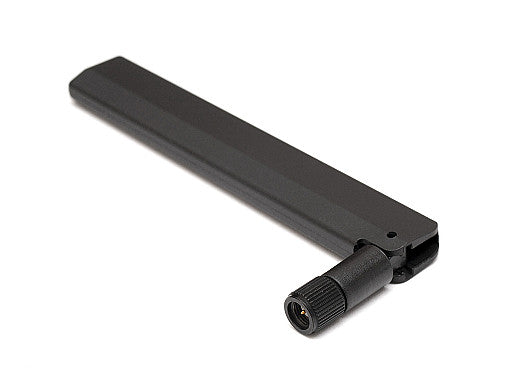

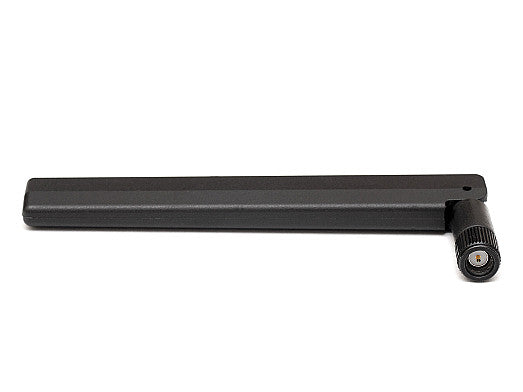

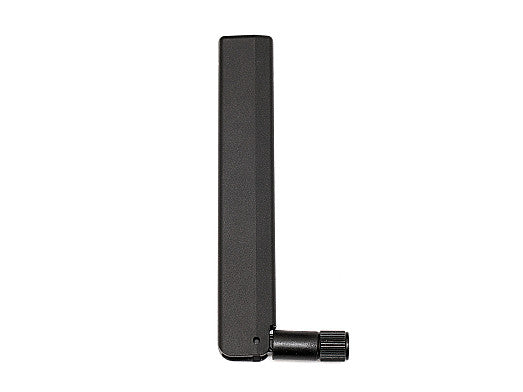

2JW1124-C952B 4G/LTE swivel Antenna connector mount

This ultra wide band high-performance antenna is designed for worldwide 4G LTE connectivity with full 2G and 3G fallback compatibility. Covering all major cellular bands from 698 to 2700 MHz, it ensures stable and consistent data throughput for access points, routers, small base stations, femto cells, repeaters, boosters, fleet management, and telematics devices. The antenna features a 360-degree swivel and a hinged connector up to 90 degrees, allowing flexible orientation and easy installation, especially in multi-antenna setups or space-constrained environments. Its robust design makes it ideal for global carrier approvals and certification processes.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - Cellular/4G LTE

Standards: GSM, CDMA, DCS, PCS, GPRS, WCDMA, UMTS, HSPA, EVDO, LTE
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.6:1, ~2.1:1, ~2.3:1
Efficiency (%): ~41.6, ~57.6, ~55
Peak Gain (dBi): ~-1.6, ~1.5, ~2.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
