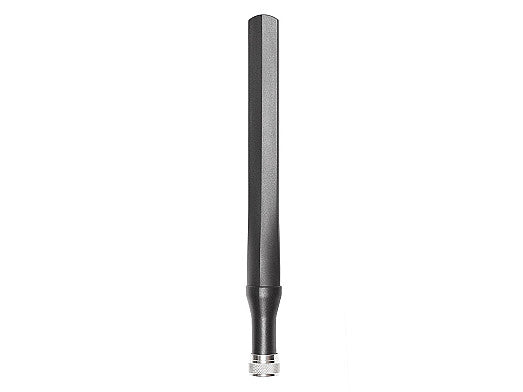

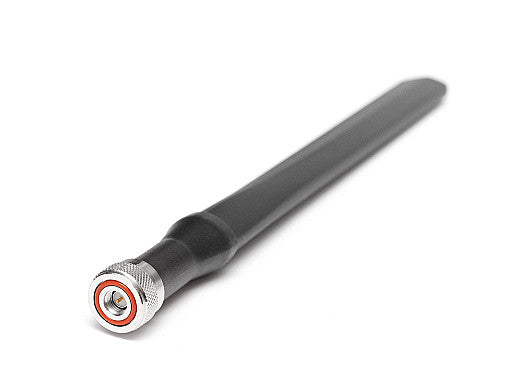

2JW1483 5G connector mount Antenna Dagger SMA-M IP67/IP69

This high-performance antenna is designed for reliable 5G, 4G, 3G, and 2G connectivity in demanding outdoor environments. Its fully waterproof IP67 and IP69 ratings make it ideal for harsh conditions, while the slim, ground plane independent dipole design ensures easy installation on a wide range of enclosures. The antenna supports a broad range of cellular standards, making it suitable for applications such as outdoor telemetry, smart metering, industrial IoT, emergency services, and more. Its omni-directional radiation pattern and robust construction provide consistent performance for mission-critical communications.

Connections

5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Connector & Cable

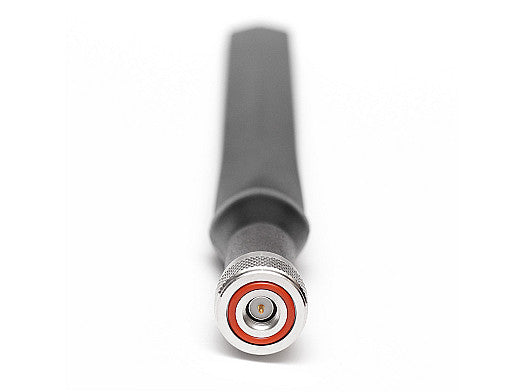

• Connector Type: SMA-M

Installation / Environmental

The slim design (192 x 20 x 18 mm), SMA-Male connector and dipole topology allow for easy direct installation to any NEMA rated, plastic or metal enclosures. Manufactured with PC/ ABS UV stable materials, this antenna is the most durable on the market with full IP67 and IP69 certification. The antenna is ground plane independent eliminating any grounding restrictions during the installation process. All products are manufactured without hazardous materials and are fully REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Connector Mount
Type: Single

Connection 1 - 5G NR/4GLTE/FirstNet/CBRS/LPWA/3G/2G

Technologies: 5G, 4G, 3G, 2G
Standards: 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency: 617-960, 1427-2690, 3300-3800 MHz
Return Loss (dB): ~-13.7, ~-14.3, ~-4.4
VSWR: ~1.6:1, ~1.7:1, ~6.3:1
Efficiency (%): ~50.0, ~55.2, ~28.1
Peak Gain (dBi): ~-0.4, ~0.6, ~-1.6
Impedance (Ohm): 50
Polarisation: Linear
Radiation Pattern: Omni-Directional
Max. Input Power (W): 25
