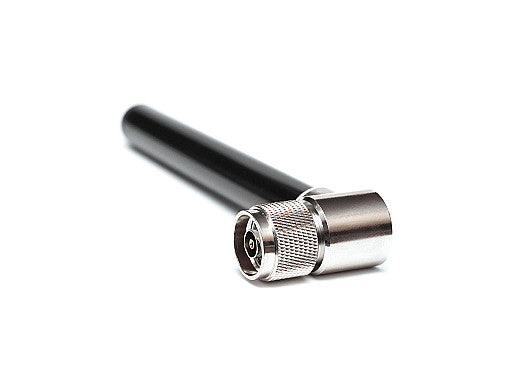

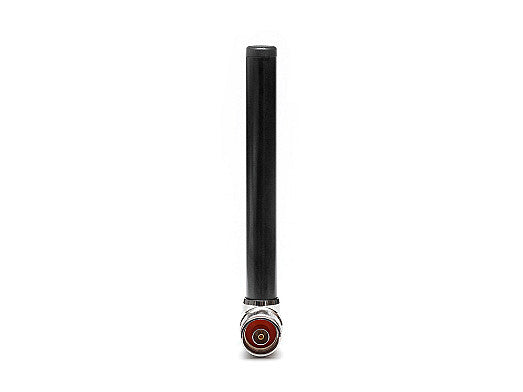

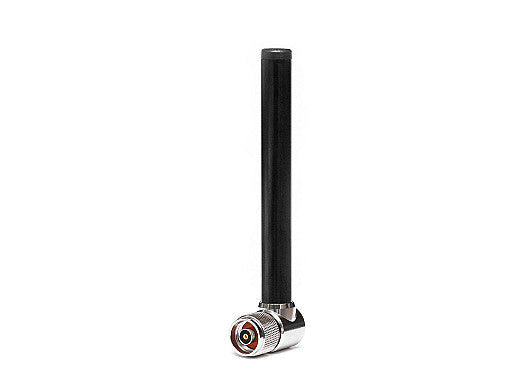

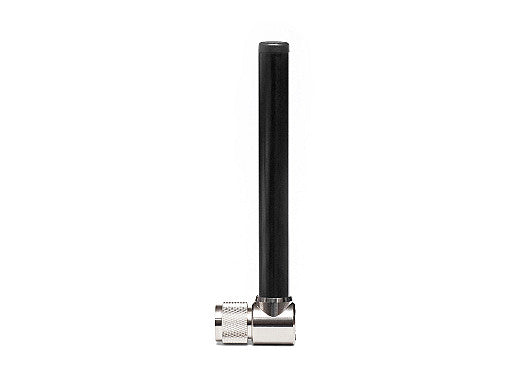

2J2202-C230N Wi-Fi 6E/7, ISM connector mount Antenna N-Male-RP

This high-gain tri-band antenna is designed for Wi-Fi 6E/7 and ISM applications, delivering reliable performance across 2.4, 5.0, and 6.0 GHz bands. Its ground plane independent dipole design ensures consistent efficiency and coverage, making it ideal for demanding environments such as smart homes, smart cities, entertainment, healthcare, and industrial automation. The antenna's robust construction and right-angle connector make it suitable for a wide range of external installations, including routers, gateways, IoT devices, and wireless security systems.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: N-Male-RP Right Angle

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Location: External
Mounting: Connector Mount
Type: Single

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.4:1, ~1.9:1, ~4.0:1
Efficiency (%): ~70.7, ~66.8, ~40.5
Peak Gain (dBi): ~3.8, ~2.1, ~1.8
Impedance (Ohm): 50
Radiation Pattern: Omni-Directional
Polarisation: Linear
Max. Input Power (W): 25
