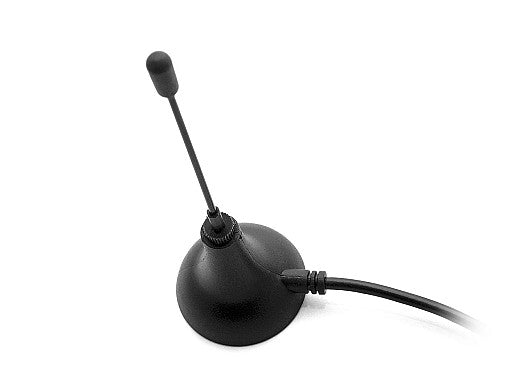

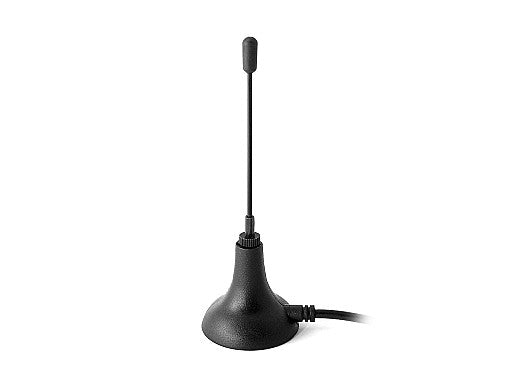

2J3915M-915 ISM magnetic mount Antenna customizable

This high-gain antenna is designed for reliable performance in the 915 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its compact form factor and magnetic mount allow for easy installation on various surfaces, while the ground plane dependent design ensures optimal signal strength. The antenna is customizable to meet specific cable and connector requirements, providing flexibility for diverse deployment scenarios.

Connections

915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Magnetic Mount
Location: External
Type: Single

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.5:1
Efficiency (%): ~64.6
Peak Gain (dBi): ~3.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 50
