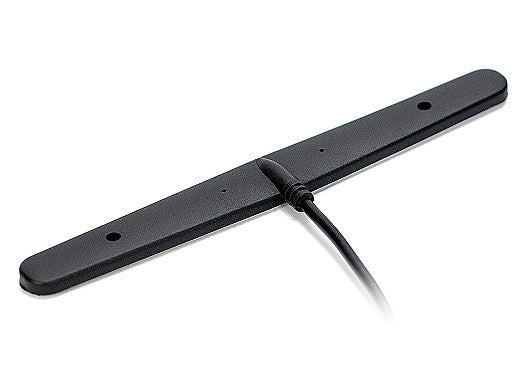

2J5115P-868 ISM Antenna adhesive mount

This high-performance antenna is designed for reliable operation in the 868 MHz ISM band, making it ideal for IoT, smart home, industrial, and asset tracking applications. Its flexible housing and low-profile design allow for easy integration in a variety of environments, while ground plane independence ensures consistent performance. The adhesive mount enables quick and secure installation on most surfaces.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount
Location: External
Type: Single

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.2:1
Efficiency (%): ~56.9
Peak Gain (dBi): ~2.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
