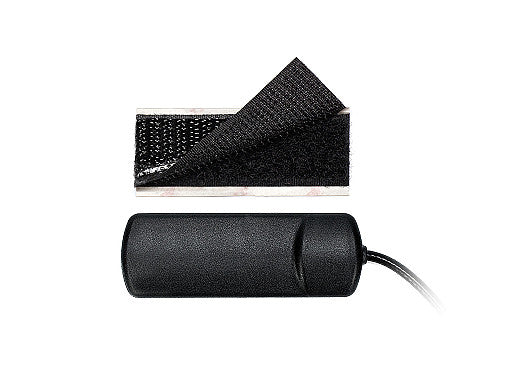

2J5502VP Wi-Fi 6E/7, ISM Antenna adhesive/velcro mount customizable

This low-profile antenna is designed for next-generation wireless connectivity, supporting Wi-Fi 6E, Wi-Fi 7, and ISM bands. Its ground plane independent design ensures reliable performance across a wide range of applications, including smart home, entertainment, healthcare, transportation, and IoT solutions. The antenna features a customizable cable and connector option, making it adaptable for various installation requirements. Its adhesive and velcro mounting options provide flexible and secure placement on different surfaces.

Connections

2.4-5.0-6.0GHz/WiFi 6E/WiFi 7/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Adhesive Mount, Velcro Mount, Velcro/Adhesive Mount
Location: External
Type: Single
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
LPWAN & IoT Communication: SigFox, LoRa
Antenna Technologies: Dipole

Connection 1 - Wi-Fi 6E/7, ISM

Standards: WiFi, BT, ZigBee, ISM, SigFox, LoRa
Frequency: 2410-2490, 4920-5925, 5925-7125 MHz
VSWR: ~1.6:1, ~1.9:1, ~2.6:1
Efficiency (%): ~54.0, ~46.0, ~26.3
Peak Gain (dBi): ~3.3, ~2.0, ~-0.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
