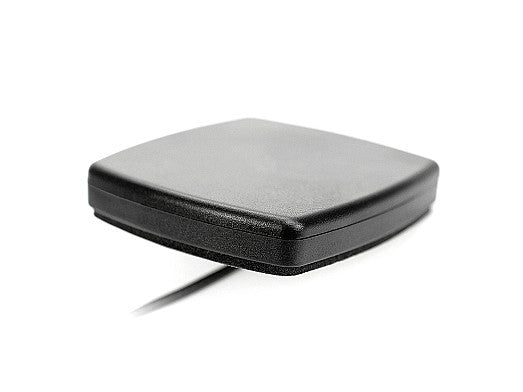

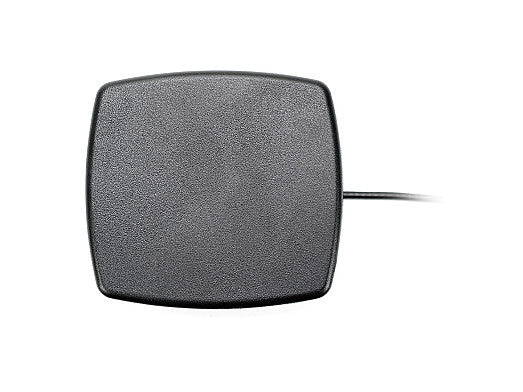

2J6002B Wi-Fi, ISM screw mount Antenna

This low-profile antenna is designed for reliable Wi-Fi and ISM band connectivity in a wide range of applications. Its compact and sleek form factor, with a maximum height of just 15 mm, makes it ideal for installations where space is limited. The antenna is ground plane independent and offers customizable cable and connector options to suit various deployment needs. It is well-suited for smart home, smart city, entertainment, healthcare, transportation, and industrial environments, providing robust performance for both indoor and outdoor use.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C

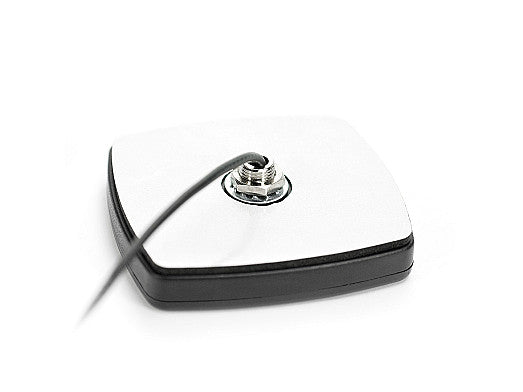

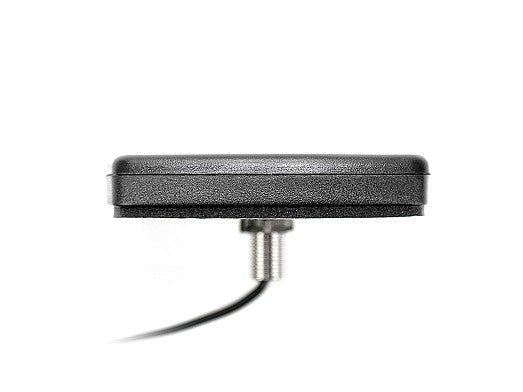

Mounting: Screw Mount
Location: External
Type: Single

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.3:1, ~1.7:1
Efficiency (%): ~38.4, ~25.6
Peak Gain (dBi): ~3.8, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
