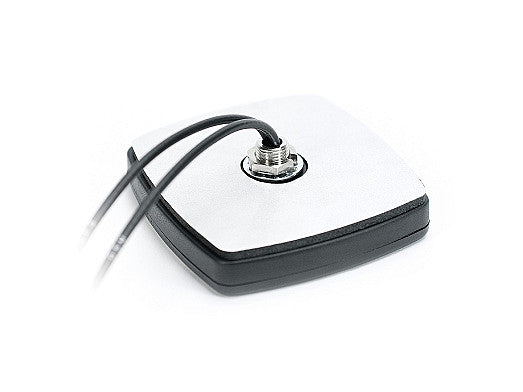

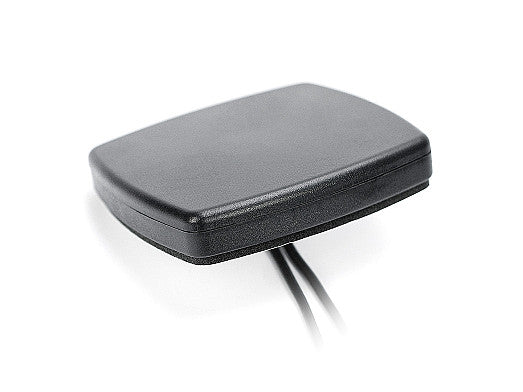

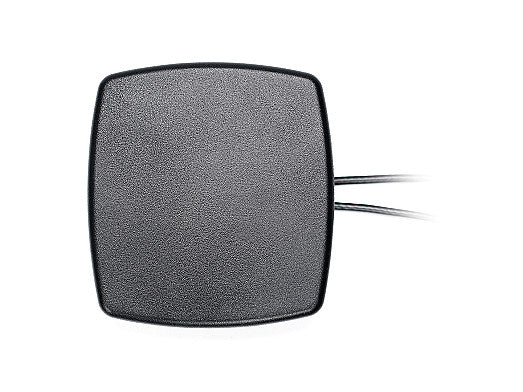

2J6002Ba Wi-Fi, ISM screw mount Antenna 2-in-1 MIMO

This low-profile, ultra-compact antenna is designed for high-performance dual-band Wi-Fi and ISM applications. Its 2-in-1 MIMO configuration ensures reliable and fast wireless connectivity, making it ideal for smart home, industrial, transportation, and multimedia environments. The sleek design with a maximum height of just 15 mm allows for easy integration into space-constrained installations, while ground plane independence offers flexible mounting options. Perfect for applications requiring robust wireless performance and versatility.

Connections

2× 2.4-5.0GHz MIMO/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External

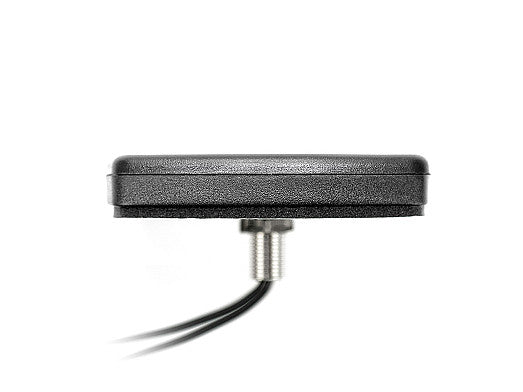

Mounting: Screw Mount
Type: Combination

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.3:1, ~1.7:1
Efficiency (%): ~38.4, ~25.6
Peak Gain (dBi): ~3.8, ~2.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.6:1, ~1.6:1
Efficiency (%): ~36.5, ~27.7
Peak Gain (dBi): ~3.8, ~3.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
