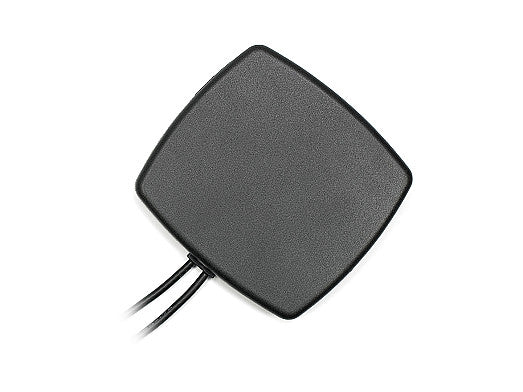

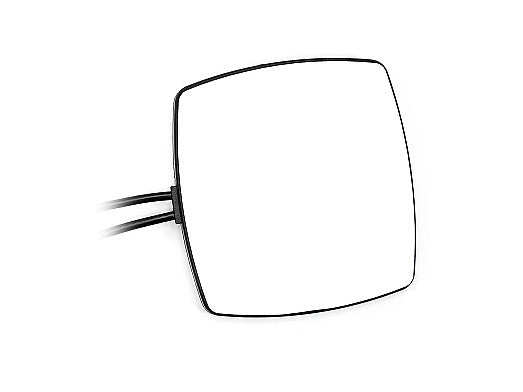

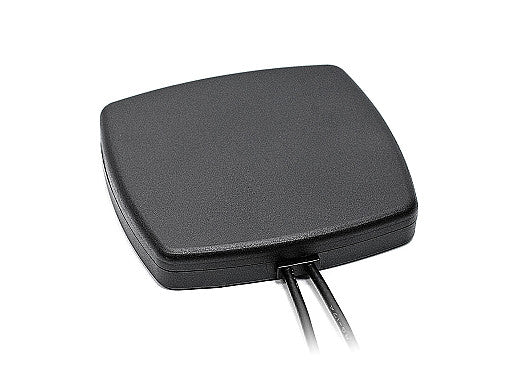

2J6002Pa Wi-Fi, ISM adhesive mount Antenna 2-in-1

This ultra-compact, low-profile antenna is designed for high-performance Wi-Fi and ISM applications, supporting MIMO technology for enhanced data throughput and reliability. Its ground plane independence and adhesive mounting make it ideal for easy integration into a wide range of devices and environments, including smart home, industrial automation, transportation, and entertainment systems. The sleek design with a maximum height of just 16 mm ensures minimal visual impact while delivering robust wireless connectivity.

Connections

2× 2.4-5.0GHz MIMO/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Location: External
Mounting: Adhesive Mount
Type: Combination

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.4:1, ~1.5:1
Efficiency (%): ~61.6, ~44.6
Peak Gain (dBi): ~5.0, ~4.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.4:1, ~1.5:1
Efficiency (%): ~60.1, ~41.2
Peak Gain (dBi): ~4.8, ~5.3
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 10
