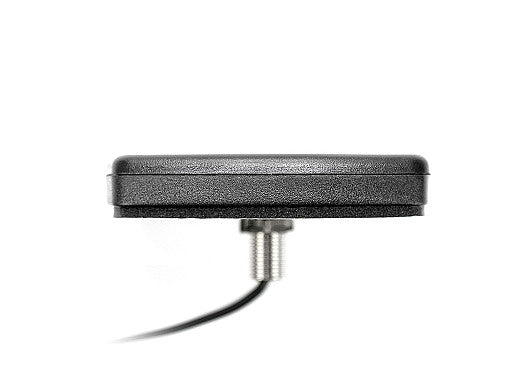

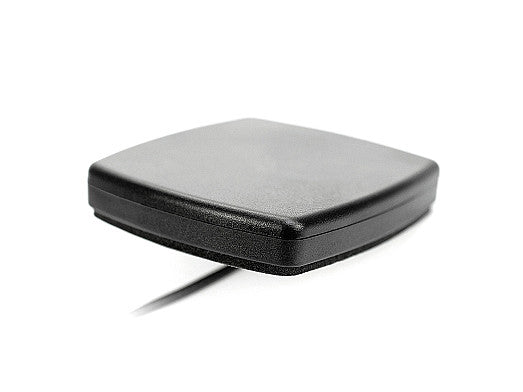

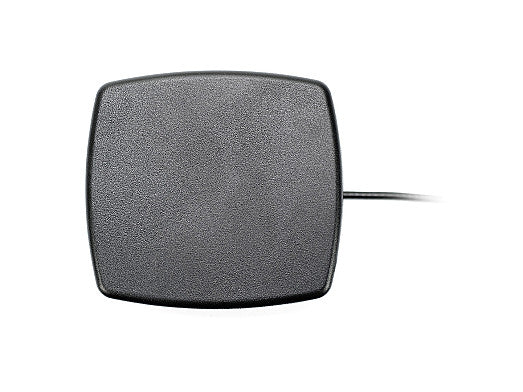

2J6015B-868-2.4 ISM, Wi-Fi screw mount Antenna IP67

This compact, low-profile antenna is designed for versatile applications requiring reliable performance in the 868 MHz ISM band and 2.4 GHz Wi-Fi spectrum. Its ground plane independence and robust construction make it ideal for IoT, smart home, industrial, and transportation environments. The antenna's screw mount design ensures secure installation, while its IP67 rating provides protection against dust and water ingress, making it suitable for both indoor and outdoor deployments.

Connections

868MHz-WIFI 2.4GHz ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C

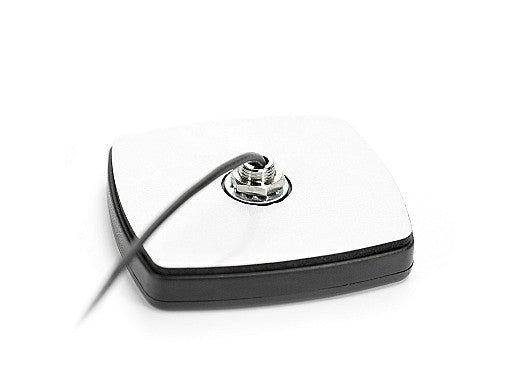

Mounting: Screw Mount
Type: Single

Connection 1 - 868 MHz / WIFI 2.4 GHz Antenna

Standards: ZigBee, ISM, SIGFOX, LoRa, WIFI, Bluetooth
Frequency: 863-870, 2410-2490 MHz
VSWR: ~1.4:1, ~1.5:1
Efficiency (%): ~50.5, ~40.8
Peak Gain (dBi): ~2.2, ~3.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
