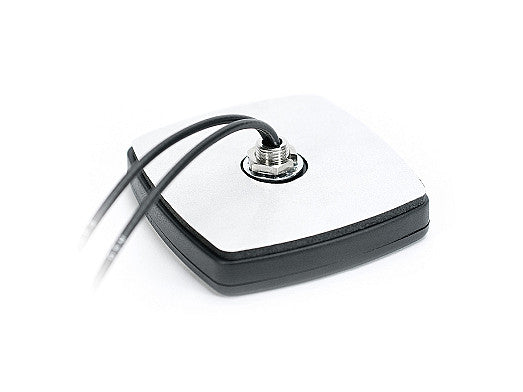

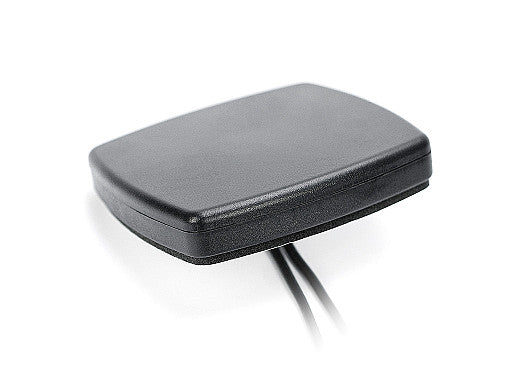

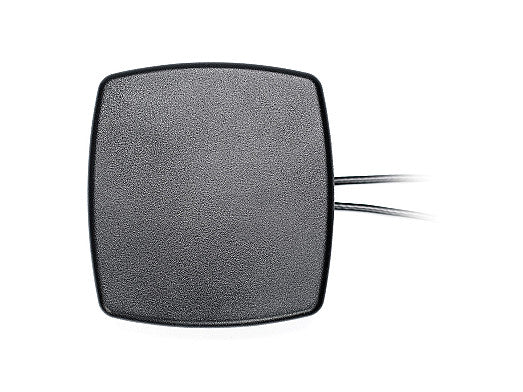

2J6039BGF ISM, GNSS screw mount Antenna 2-in-1

This compact 2-in-1 antenna is designed for reliable performance in both ISM (868/915 MHz) and GNSS (GPS, GLONASS, Galileo, QZSS) applications. Its low-profile, ground plane independent design makes it ideal for installations where space is limited, while maintaining high efficiency and gain. The antenna is well-suited for smart cities, logistics, fleet management, IoT, and asset tracking, offering robust connectivity for a wide range of industrial and commercial uses.

Connections

GPS/GLO/QZSS/Galileo/L1
868-915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External
LPWAN & IoT Communication: Sigfox, LoRa, LPWA, RFID, ISM

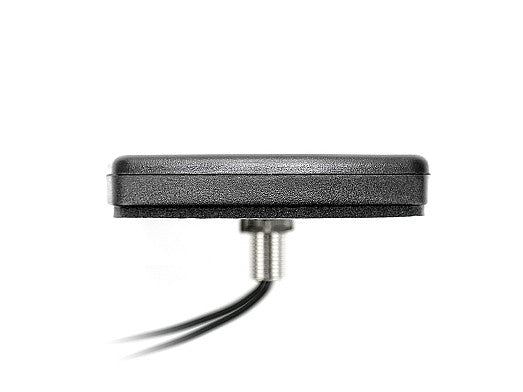

Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination

Connection 1 - 868/915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870, 902-928 MHz
VSWR: ~2.6:1, ~3.5:1
Efficiency (%): ~40.8, ~40.7
Peak Gain (dBi): ~1.3, ~1.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1610 MHz
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
