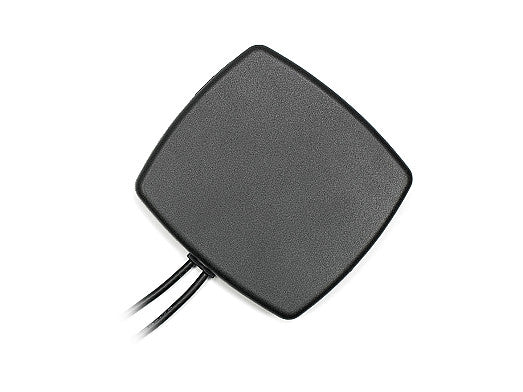

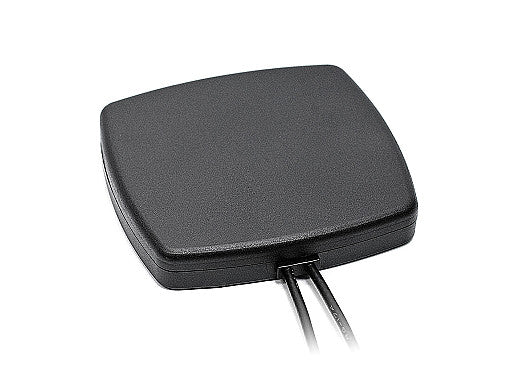

2J6047M 4G/LTE, Wi-Fi, ISM magnetic mount Antenna 2-in-1

This compact 2-in-1 antenna is designed for reliable performance across 4G/LTE, 3G, 2G, Wi-Fi, Bluetooth, ZigBee, and ISM bands. Its low-profile, ground plane independent design makes it ideal for installations where space is limited, while the magnetic mount ensures quick and secure attachment to metal surfaces. The antenna is suitable for a wide range of applications including mobile networks, IoT, asset tracking, smart cities, and industrial monitoring.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Magnetic Mount
Short-Range Wireless Standards: WiFi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~1.8:1, ~2.8:1, ~1.5:1
Efficiency (%): ~37.8, ~27.3, ~51.3
Peak Gain (dBi): ~1.5, ~3.2, ~6.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.7:1, ~1.3:1
Efficiency (%): ~42.1, ~39.2
Peak Gain (dBi): ~3.0, ~4.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
