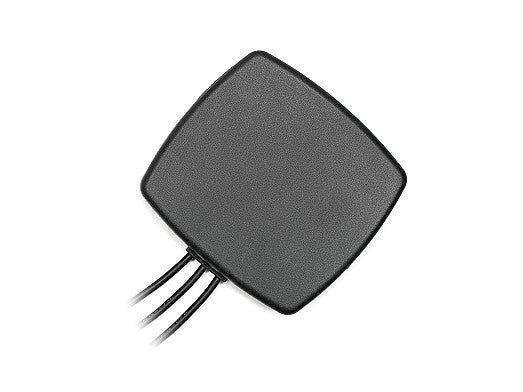

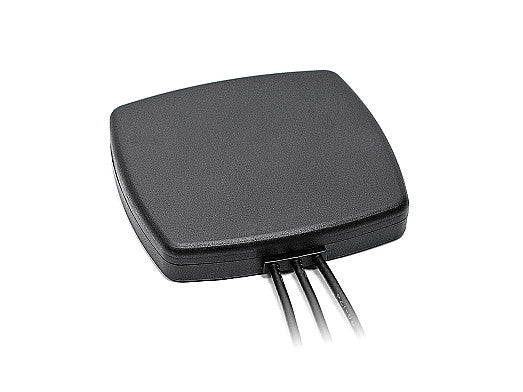

2J6047Pa 4G/LTE, Wi-Fi, ISM Antenna adhesive 3-in-1 Customizable Connector

This compact 3-in-1 antenna is designed for versatile connectivity, supporting 4G/LTE, Wi-Fi, and ISM bands. Its low-profile, ground plane independent design makes it ideal for applications where space is limited, such as automotive, IoT, and industrial environments. The antenna delivers high peak gain for both LTE and Wi-Fi, ensuring reliable performance for mobile networks, asset tracking, smart cities, and more. The adhesive mount allows for easy installation on a variety of surfaces.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT

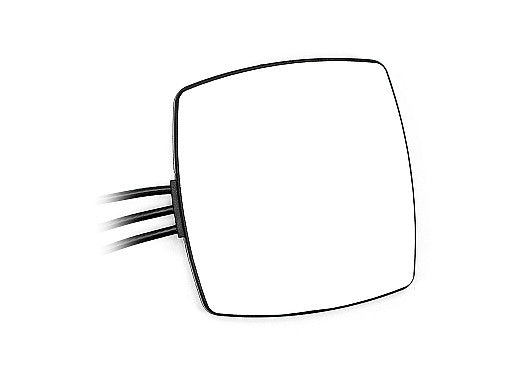

Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Combination

Connection 1 - 4G LTE MIMO

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.3:1, ~1.2:1, ~1.7:1
Efficiency (%): ~43.7, ~54.7, ~33.6
Peak Gain (dBi): ~3.2, ~4.3, ~1.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 4G LTE MIMO

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.2:1, ~1.2:1, ~1.7:1
Efficiency (%): ~45.4, ~56.8, ~43.6
Peak Gain (dBi): ~4.1, ~3.5, ~3.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - 2.4/5.0 GHz ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.3:1, ~1.4:1
Efficiency (%): ~30.6, ~27.6
Peak Gain (dBi): ~7.5, ~3.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
