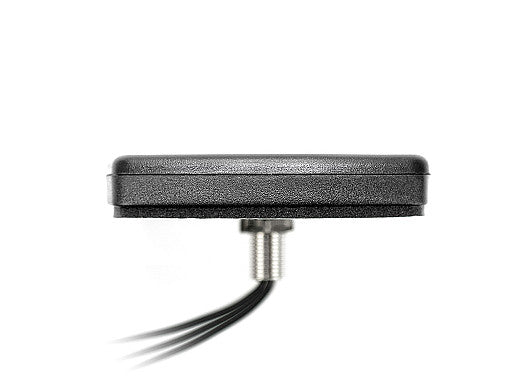

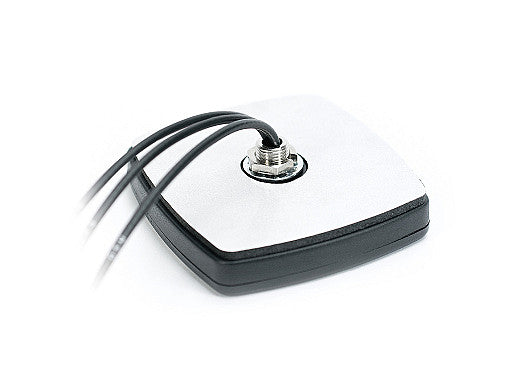

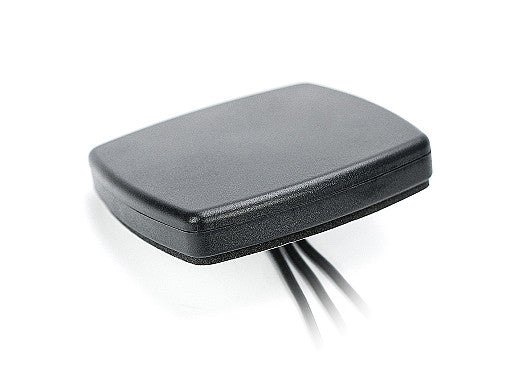

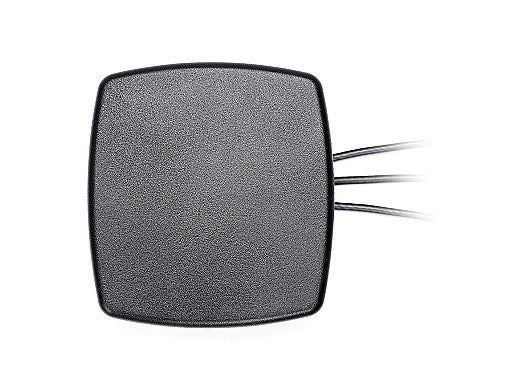

2J6050BGF 4G/LTE, GNSS, Wi-Fi, ISM screw mount Antenna 3-in-1 SMA-M 300cm

This low-profile, heavy-duty antenna delivers reliable multi-technology connectivity in a compact form factor. Designed for both indoor and outdoor use, it supports cellular/LTE, Wi-Fi/ISM, and GNSS standards, making it ideal for applications such as vehicle tracking, fleet management, public safety, logistics, and wireless data transmission. Its ground plane independence allows flexible installation on any surface, while the robust UV-stable housing ensures durability in harsh environments.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-Male
• Cable Length: 300cm

Installation / Environmental

The antenna is a heavy-duty 3-in-1 full indoor/outdoor antenna equipped with three ports. The production material used is PC/ABS UV stable having a high-grade UV stable plastic, which protects it from extreme atmospheric conditions, ultraviolet rays and temperatures between -40°C and +85°C. All cables have an SMA-Male standard connector and 300cm standard cable length and are fully customizable by offering additional connector types, cable lengths, and cable types. It comes with a low loss RF cable, which provides better signal strength, reception and range. This antenna is ground plane independent making it suitable for installation anywhere on any surface. The antenna is completely REACH and RoHS compliant.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Multi-Technology
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: WiFi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
VSWR: ~2.8:1, ~2.4:1, ~1.4:1
Efficiency (%): ~30.5, ~27.9, ~45.9
Peak Gain (dBi): ~1.4, ~2.9, ~5.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.6:1, ~1.8:1
Efficiency (%): ~35.4, ~26.4
Peak Gain (dBi): ~3.4, ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - GPS/GLONASS

Standards: GPS, QZSS, Galileo, GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
