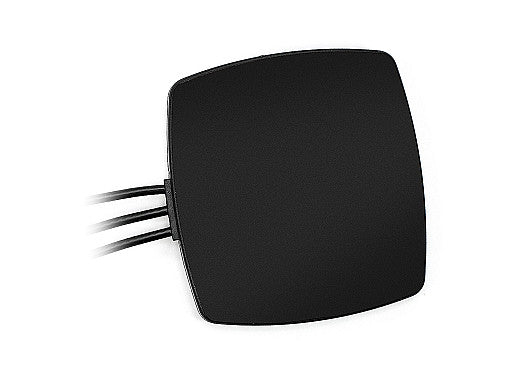

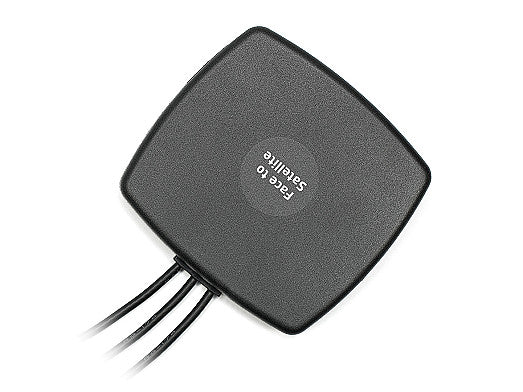

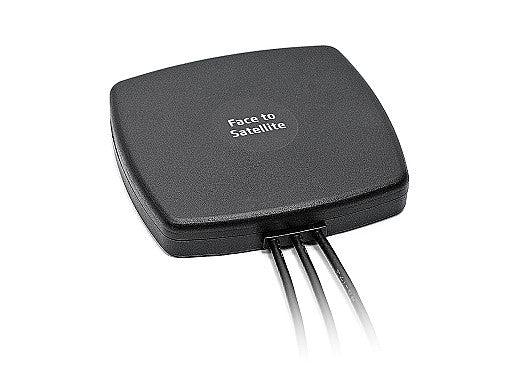

2J6050MGF 4G/LTE, GNSS, Wi-Fi, ISM magnetic mount Antenna 3-in-1

This low-profile magnetic mount antenna delivers reliable multi-technology connectivity for a wide range of applications. Designed for use with LTE, Wi-Fi, and GNSS devices, it supports worldwide utility bands for 4G, 3G, and 2G networks. The antenna is ground plane independent and features an active GNSS element with pre-filtering for enhanced navigation accuracy. Its robust construction and compact form factor make it ideal for automotive, industrial, and IoT deployments where space and durability are critical.

Connections

4G LTE/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency: 698-960, 1710-2170, 2500-2700 MHz
Peak Gain (dBi): ~2.9, ~3.2, ~2.1
VSWR: ~2.2:1, ~1.2:1, ~2.2:1
Efficiency (%): ~55.6, ~56.0, ~38.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.3:1, ~1.3:1
Efficiency (%): ~50, ~30
Peak Gain (dBi): ~3.2, ~4.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2
