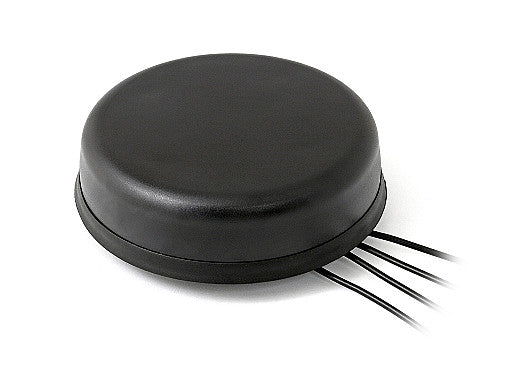

2J6550BGFc-2.4 4G/LTE, GNSS, Wi-Fi, ISM screw mount Antenna 4-in-1

This heavy-duty 4-in-1 combination antenna is designed for robust performance across European 4G LTE, 3G, and 2G bands, as well as GNSS (GPS, GLONASS, Galileo), Wi-Fi, Bluetooth, ZigBee, RFID, and ISM applications. Its ground plane dependent design ensures reliable connectivity and wideband coverage, making it ideal for demanding environments and mission-critical applications. The anti-rotation screw mount provides secure installation for automotive, industrial, and telematics use cases.

Connections

2× 4G LTE MIMO/FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx/3G/2G
GPS/GLO/QZSS/Galileo/L1
2.4GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LPWA, NB-IoT

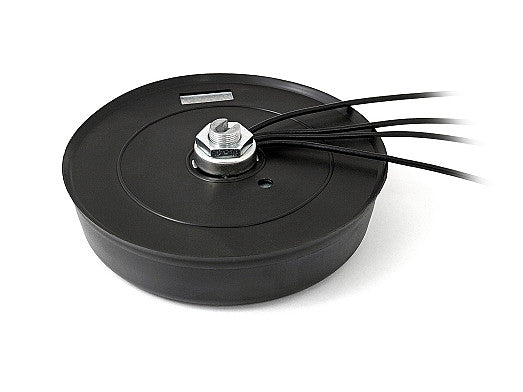

Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, RFID, ISM
Type: Combination

Connection 1 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency (MHz): 791-960, 1710-2170, 2500-2700
VSWR: ~2.1:1, ~1.4:1, ~1.6:1
Efficiency (%): ~27.5, ~30.7, ~20.0
Peak Gain (dBi): ~0.1, ~2.1, ~-0.8
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - Cellular/4G LTE

Standards: 2G, 3G, 4G
Frequency (MHz): 791-960, 1710-2170, 2500-2700
VSWR: ~2.1:1, ~1.5:1, ~1.6:1
Efficiency (%): ~25.6, ~30.4, ~19.1
Peak Gain (dBi): ~-0.1, ~1.5, ~-0.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 3 - 2.4 GHz ISM

Standards: Wi-Fi, BT, ZigBee, ISM
Frequency (MHz): 2410-2490
VSWR: ~1.3:1
Efficiency (%): ~26.8
Peak Gain (dBi): ~1.6
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 4 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency (MHz): 1575.42, 1598-1606
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 23 @ 3V, 24 @ 5V
Saw Filter Type: Post-Filter
Voltage (V): 2.7 - 5.5
Noise Figure (dB): 1.2
Current Consumption (mA): 22 @ 5V
Power Consumption (mW): max 138
