2J  |  SKU: 2J6602B-2.4

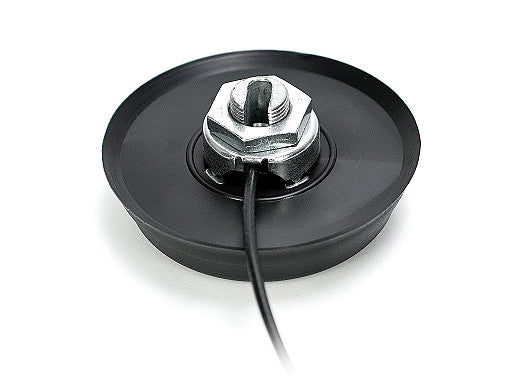

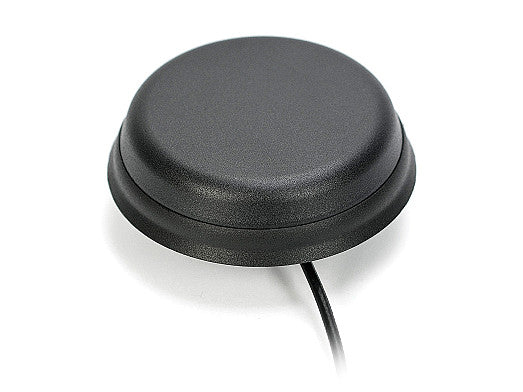

2J6602B-2.4 Wi-Fi, ISM screw mount Antenna IP67/IP69K

Regular price €0,00
Tax included


Manufacturer / (EU) Responsible Person

Manufacturer
2J Antennas, s.r.o.
Stefanikova 61, Bardejov, 08501, Slovakia
sales@2j-antennas.com
+421 (54) 488-1274

Description

This low-profile antenna is designed for reliable Wi-Fi and ISM band connectivity in demanding environments. Its ground plane independent design and anti-rotation screw mount ensure secure installation and consistent performance. The antenna is ideal for applications such as smart home, smart cities, medical devices, transportation, asset tracking, and more, where robust wireless communication is essential. With high peak gain and rugged IP67/IP69K protection, it is suitable for both indoor and outdoor deployments.

Connections

2.4GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM



Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Location: External
Type: Single
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM

Connection 1 - 2.4 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490 MHz
VSWR: ~1.5:1
Efficiency (%): ~48.7
Peak Gain (dBi): ~4.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
