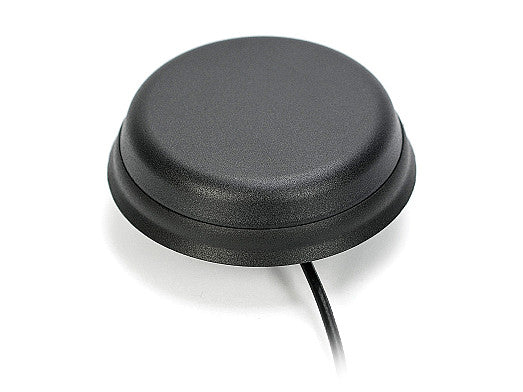

2J6602B Wi-Fi, ISM screw mount Antenna IP67 IP69K

This low-profile antenna is designed for reliable Wi-Fi and ISM band connectivity in demanding environments. Its ground plane independent design and anti-rotation screw mount ensure secure installation and consistent performance. The antenna is ideal for applications such as smart home, smart cities, transportation, automation, marine, and more, where robust wireless communication is essential. The customizable cable and connector options allow for flexible integration into a wide range of devices and systems. With high peak gain and rugged IP67/IP69K protection, this antenna is suitable for both indoor and outdoor deployments.

Connections

2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C

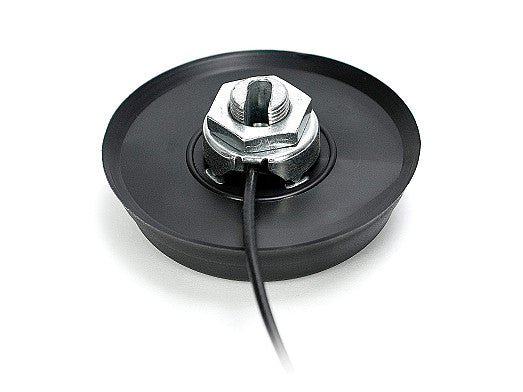

Mounting: Screw Mount
Location: External
Type: Single
Short-Range Wireless Standards: WiFi, Bluetooth, ZigBee
LPWAN & IoT Communication: LPWA, ISM

Connection 1 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.5:1, ~1.5:1
Efficiency (%): ~48.7, ~29.2
Peak Gain (dBi): ~4.9, ~4.5
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
