2J6603BGF Wi-Fi, ISM, GNSS screw mount Antenna 2-in-1 SMA-Male-RP/SMA-Male 300cm IP67/IP69K

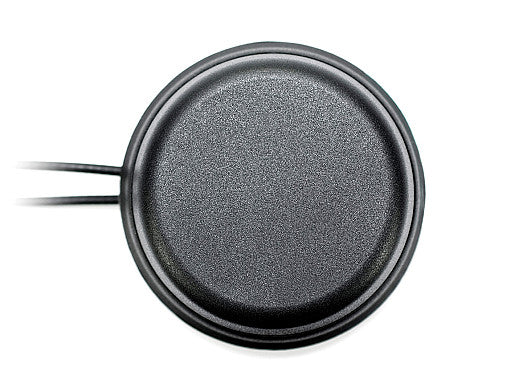

This low-profile 2-in-1 antenna delivers high-performance Wi-Fi, ISM, and GNSS connectivity in a compact, rugged design. Engineered for reliability and precision, it is ideal for LPWA, navigation, and IoT applications where space and durability are critical. The omni-directional Wi-Fi/ISM element ensures robust 360-degree coverage, while the active GNSS element provides high gain and pre-filtered accuracy for demanding positioning needs. Its waterproof, ground plane independent housing and anti-rotation screw mount make it suitable for permanent outdoor installations in harsh environments. Typical use cases include smart devices, automotive, asset tracking, security, and industrial monitoring.

Connections

GPS/GLO/QZSS/Galileo/L1
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Connector & Cable

• Connector Type: SMA-Male-RP (Wi-Fi/ISM), SMA-Male (GNSS)
• Cable Length: 300cm (each)
• Cable Type: D302 (Wi-Fi/ISM), D100 (GNSS)

Installation / Environmental

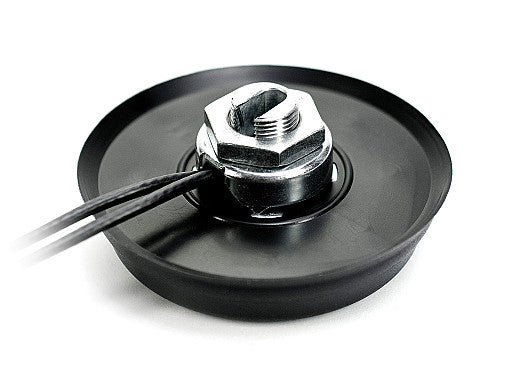

2J6603BGF is enclosed in a low-profile antenna disc shape housing (Ø 77.3 x 15 mm) that is made from durable ASA material with an antenna base that is manufactured with Zamak material making this antenna ideal for outdoor extreme applications. This ground plane independent antenna is fully waterproof (IP67/IP69) and comes with a screw mount that has an anti-rotation mechanism for permanent and secure installation on any surface.

The ISM cable is connected via SMA-Male-RP connector and comes with a 300 cm long D302 standard cable. The GNSS cable is connected via SMA-Male connector and comes with a 300 cm long D100 standard cable. We offer a wide range of alternative connectors and cables for most customization needs. Our experts are available to assist our customers with antenna selection needs and customizations.

All our products are designed with the environment in mind and manufactured without hazardous materials with full REACH and RoHS compliance.

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External
Mounting: Screw Mount
Type: Combination
Certificates: IP67, IP69K

Connection 1 - Wi-Fi/ISM

Standards: WiFi, Bluetooth, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~2.0:1, ~2.0:1
Efficiency (%): ~35.6, ~20.5
Peak Gain (dBi): ~2.9, ~0.9
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - GNSS

Standards: GPS, QZSS, Galileo, GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Noise Figure (dB): 1.5 Typ
Current Consumption (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
ESD Protection (kV): 2

Download Datasheet PDF
