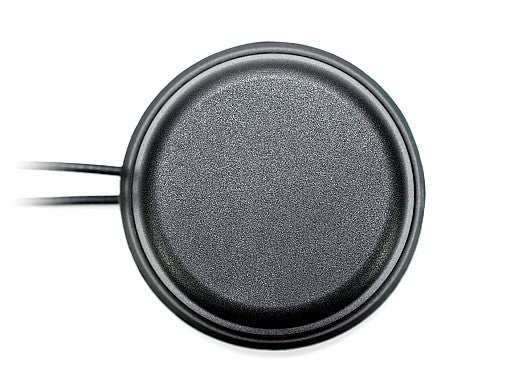

2J6605B 3G/2G, Wi-Fi, ISM screw mount Antenna IP67/IP69K

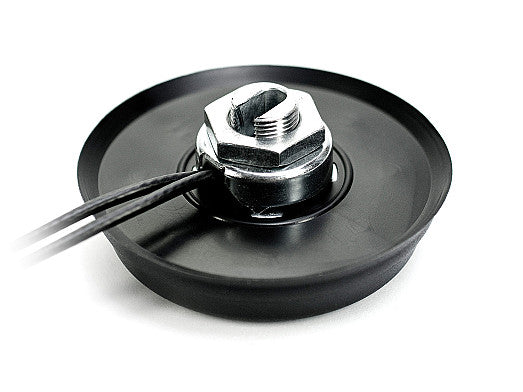

This low-profile combination antenna is designed for reliable performance in demanding environments. It supports both 3G/2G cellular and Wi-Fi/ISM bands, making it ideal for applications such as mobile networks, asset tracking, smart cities, and industrial automation. The ground plane dependent design and anti-rotation mounting ensure secure installation and optimal signal quality. With a rugged housing and high ingress protection, this antenna is suitable for outdoor and harsh conditions.

Connections

3G/2G/CELL
2.4-5.0GHz/WiFi/LPWA/BT/ZigBee/RFID/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Mounting: Screw Mount
Type: Combination
Location: External

Connection 1 - Cellular

Standards: 2G and 3G
Frequency: 824-960, 1710-2170 MHz
VSWR: ~2.7:1, ~1.9:1
Efficiency (%): ~19.0, ~16.9
Peak Gain (dBi): ~-3.0, ~-1.4
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 100

Connection 2 - 2.4/5.0 GHz ISM

Standards: WiFi, BT, ZigBee, ISM
Frequency: 2410-2490, 4920-5925 MHz
VSWR: ~1.4:1, ~1.4:1
Efficiency (%): ~18.2, ~10.0
Peak Gain (dBi): ~-1.6, ~-2.0
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
