2J6639BGF-868 GNSS, ISM screw mount Antenna IP67 IP69

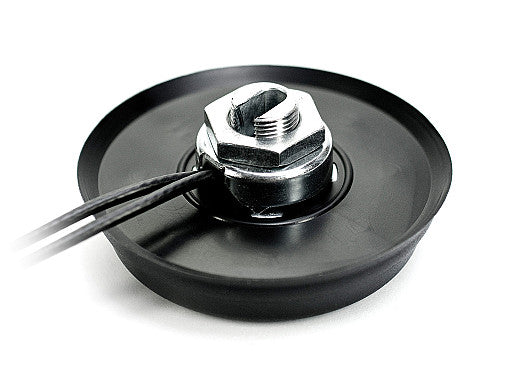

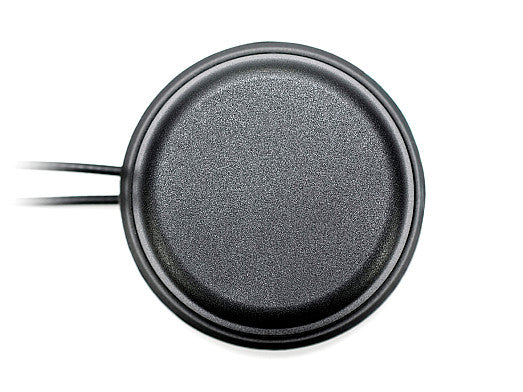

This low-profile, high-gain antenna is designed for reliable performance in demanding environments. It combines active GNSS (GPS, GLONASS, Galileo, QZSS) and 868 MHz ISM band support, making it ideal for applications such as smart cities, logistics, fleet management, IoT, and asset tracking. The antenna features ground plane dependence, anti-rotation mounting, and a robust screw mount for secure installation. Its IP67 and IP69 ratings ensure excellent protection against dust and water, making it suitable for outdoor and industrial use.

Connections

GPS/GLO/QZSS/Galileo/L1
868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External
Mounting: Screw Mount
Type: Combination

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 863-870 MHz
VSWR: ~1.5:1
Efficiency (%): ~51.7
Peak Gain (dBi): ~3.2
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - GNSS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: <=1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
