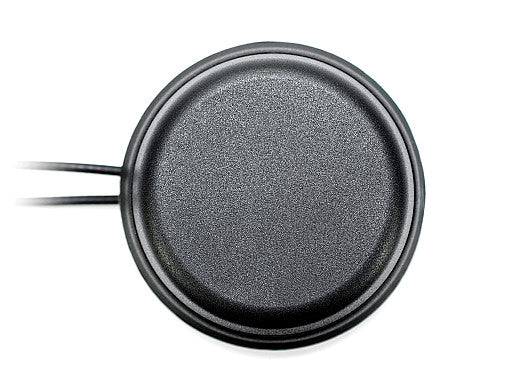

2J6639BGF-915 GNSS, ISM screw mount Antenna IP67 IP69

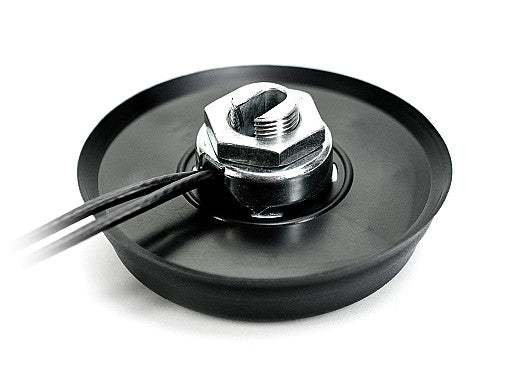

This low-profile, high-gain antenna is designed for reliable performance in demanding environments. It combines active GNSS (GPS, GLONASS, Galileo, QZSS) and 915 MHz ISM band support, making it ideal for applications such as smart cities, logistics, fleet management, IoT, and asset tracking. The ground plane dependent design ensures optimal signal quality, while the screw mount and anti-rotation features provide secure installation. The antenna is rated IP67 and IP69 for superior protection against dust and water, making it suitable for outdoor and industrial use.

Connections

GPS/GLO/QZSS/Galileo/L1
915MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C
Antenna Technologies: Multi-Technology
Location: External
Mounting: Screw Mount
Type: Combination

Connection 1 - 915 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa
Frequency: 902-928 MHz
VSWR: ~1.2:1
Efficiency (%): ~51.0
Peak Gain (dBi): ~3.7
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25

Connection 2 - GPS/GLONASS

Standards: GPS/QZSS/Galileo/GLONASS
Frequency: 1575.42, 1598-1606 MHz
VSWR: ≤1.4:1
Impedance (Ohm): 50
Polarisation: RHCP
Active Gain (dB): 28 @ 2.7 V
Saw Filter Type: Pre-Filter
Voltage (V): 1.5 - 3.6
Current (mA): 9 Typ
Power Consumption (mW): 24.3 Typ
