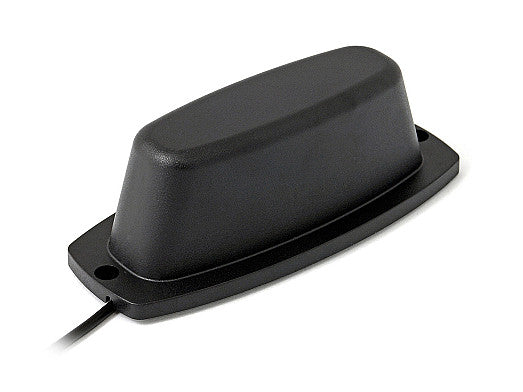

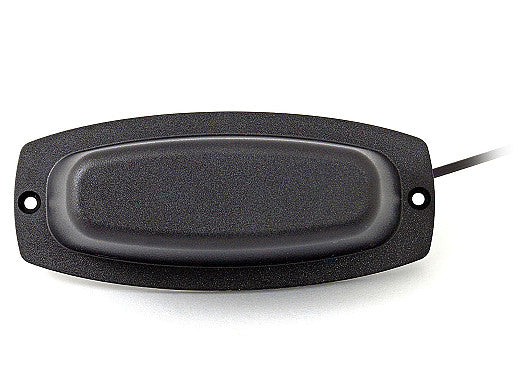

2J6815MP-868 ISM Antenna adhesive/magnetic Antenna customizable

This high-performance antenna is designed for reliable operation in the 868 MHz ISM band, supporting a wide range of IoT and industrial applications. Its ground plane dependent design ensures optimal performance, while the included adhesive mounting sticker allows for flexible installation. The antenna is suitable for use in smart home, smart city, industrial IoT, healthcare, transportation, and asset tracking environments, among many others. Customizable cable and connector options provide adaptability for various deployment needs.

Connections

868MHz/Sigfox/LoRa/LPWA/RFID/ZigBee/ISM

Technical Specifications

Operating Temperature: -40 °C to +85 °C

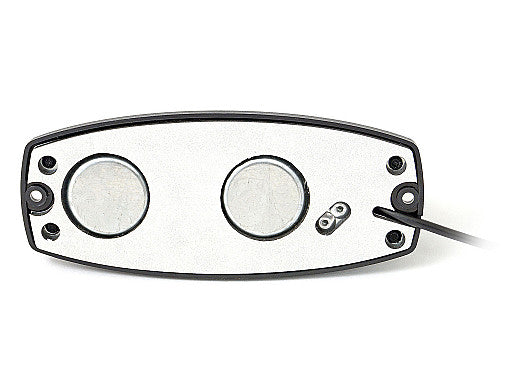

Mounting: Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Location: External
Type: Single
LPWAN & IoT Communication: Sigfox, LoRa, LPWA, RFID, ISM

Connection 1 - 868 MHz ISM

Standards: ZigBee, ISM, SIGFOX, LoRa, RFID
Frequency: 863-870 MHz
VSWR: ~1.2:1
Efficiency (%): ~70.3
Peak Gain (dBi): ~3.1
Impedance (Ohm): 50
Polarisation: Linear
Max. Input Power (W): 25
